In computed tomography (CT), an x-ray tube rotates around the body while continuously projecting a thin fan of x-rays. Electronic detectors opposite the tube measure the number of x-rays passing through the body and its angle of projection. The number of x-rays reaching the detector changes as the beam passes through different tissues. This data is then processed by a computer to determine the most probable density at each point inside the volume scanned. The density is calculated in Hounsfield units, which divide the entire spectrum of possible densities into 4,000 levels ranging from -1,000 to 3,000. The lower the value, the lower the density. Air is represented by -1,000, whereas water is assigned 0, with lead or other heavy metal being the densest at +3,000.
The resulting image on the monitor is an attenuation map, each point or 'voxel' representing the attenuation of the x-ray beam at that point. All the attenuation points combine to make a cross-section image of the body. After moving the animal a certain distance, the process is repeated, thereby scanning the whole area of interest. CT has much better contrast discrimination than standard radiographs, so individual parts of the body are easier to distinguish.
Contrast media can also be used to increase the contrast between structures. Many veterinary referral practices have 8 - 64 slice scanners, and the scan itself is relatively quick. Due to the sensitive nature of tomography, animals must be sedated or anesthetised, although the interval of anesthesia is short. CT scans are used to detect deep structural changes and modern scanners are used to evaluate dynamic processes such as blood flow. To use them effectively, CT scan operators need to have in-depth knowledge of anatomy, physiology, artifacts and of the operation of the scanners.
| Power requirements | Input voltage | Single phase AC220V |
| Supply frequency | 50Hz | |
| Power capacity | Not less than 3.5 kVA | |
| Mechanical capacity | Bed size | Length, width and height: 1850mm×550mm×730mm, deviation±5% |
| Scanning frame size | Length, width and height: 1670mm×810mm×1600mm, deviation±5% | |
| Bed surface translation range | 0～800mm deviation±5% | |
| Bed lifting range | 0～150mm deviation±5% | |
| Bearing | 50kg | |
| Electric power | Maximum pulse fluoroscopic output electrical power | 1.875kW(15mA,125kV,10s) |
| Maximum continuous fluoroscopic output electrical power | 1.5kW(12mA,125kV,20s) | |
| Standard pulse fluoroscopy output electrical power | 1.6kW(16mA,100kV,10s) | |
| Maximum continuous fluoroscopic output electrical power | 1.4kW(14mA,100kV,20s) | |
| Loading factors and control | Tube voltage/kV | 50kV～125kV, adjust as per levels, adjustable steps of 1kV, deviation ≤±10% |
| Tube current/mA | 1mA～16mA, adjust as per levels, adjustable steps of 1mA, accuracy conforms to ±1mA | |
| Loading time/ms | 24s, based on external trigger loading time | |
| Imaging performance | Imaging size | 307.2mm×245.7mm |
| Spatial resolution | ≥1.7lp/mm | |
| Imaging time | ≤40s | |
| Working environment requirements | Ambient temperature | 10℃～40℃ |
| Relative humidity | 30%～75% | |
| Atmospheric pressure | 70kPa～106kPa | |
| Transportation and storage conditions | Ambient temperature | -20℃～55℃ |
| Relative humidity | 30%～93% | |
| Atmospheric pressure | 70kPa～106kPa |

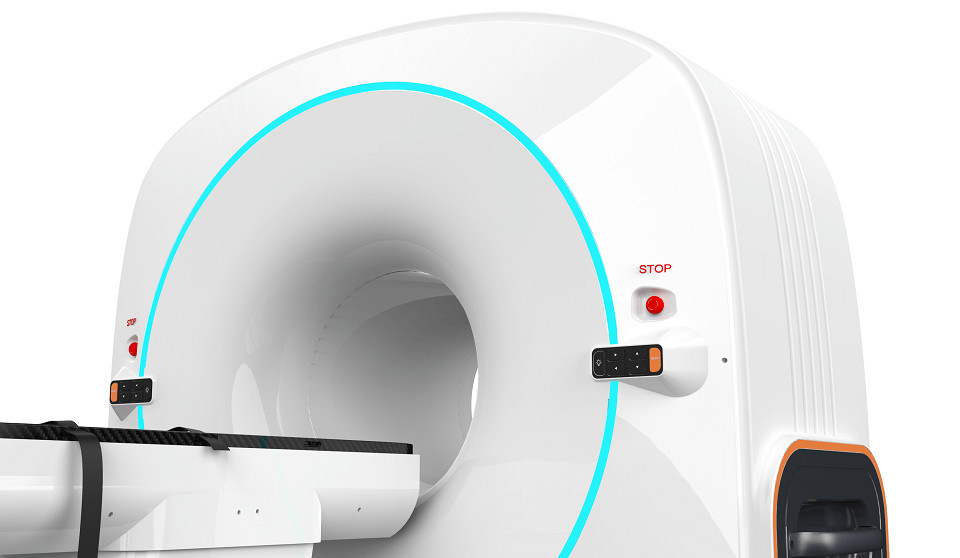

Veterinary Medical Equipment is an essential tool for veterinarians and pet owners alike. Golead's TC-460 model is a reliable, affordable CT scanner for cats and other small animals, certified by the European CE standard. It is packaged in an easy-to-transport wooden box and comes with a minimum order quantity of one unit. Delivery is within 30 days and payment is available via T/T. Golead is capable of supplying up to 100 units per month, making it an ideal choice for busy clinics. The TC-460 has a supply frequency of 50Hz, and an input voltage of single phase AC220V. Its scanning frame size is 1670mm×810mm×1600mm.
Golead's Veterinary Medical Equipment is a cost-effective, reliable solution for pet owners and veterinarians. Its CE certification guarantees safety and reliability, while its convenient wooden box packaging ensures that the TC-460 can be transported easily. The single phase AC220V input voltage and 50Hz supply frequency makes it a suitable option for busy clinics. With a scanning frame size of 1670mm×810mm×1600mm, the TC-460 is an ideal choice for veterinary medical equipment.
We provide technical support and service for our Veterinary Medical Equipment. Our support team is available 24/7 to help you with any questions or technical issues. Our qualified technicians can repair any issues with your equipment and provide assistance with installation, maintenance, and troubleshooting. We also provide on-site training for your staff, and free software upgrades to ensure your equipment is always up to date. For any additional help or guidance, please contact our support team at any time.
Packaging of Veterinary Medical Equipment should be secure and safe to ensure the safety of the equipment. It should be done in accordance with the manufacturer's instructions.
When shipping Veterinary Medical Equipment, it should be sent via a reputable shipping company, with insurance coverage to cover any potential damages or losses. It should also be packaged in accordance with the shipping company's regulations and requirements.
In addition, it is important to check that the Veterinary Medical Equipment is properly labeled and identified for delivery. It is also important to provide detailed instructions for unpacking and using the equipment.
