Veterinary Ultrasound System Bovine Ultrasound Machine 4.0MHz 6.0MHz 8.0MHz

Name: Veterinary Ultrasound System Bovine Ultrasound Machine 4.0MHz 6.0MHz 8.0MHz
Brand: Golead Medical Group Co.,Ltd
SKU: UL8-4T
Availability: InStock

Brand Name:	Golead
Model Number:	UL8-4T
MOQ:	1 Unit
Delivery Time:	2 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO13485

Product Name:

Portable Veterinary Bovine Ultrasound Machine Based On Android Phone And Tablet

Element:

Scanning Mode:

B, PWD

Working Frequency:

4.0MHz, 6.0MHz, 8.0MHz

Color:

White, Black

Weight:

350g

Application:

Equine, Bovine

Connector:

Type-C

Gray Scale:

256

Warranty:

15 Months

Packaging Details:

carton box

Supply Ability:

1,000 units per month

Highlight:

Bovine Ultrasound Machine 4.0MHz

Bovine Ultrasound Machine 6.0MHz

veterinary ultrasound system 8.0MHz

Product Description

Veterinary Ultrasound System Bovine Ultrasound Machine 4.0MHz 6.0MHz 8.0MHz

Portable Veterinary Bovine Ultrasound Machine

Based on Android Phone and Tablet platform, this portable veterinary ultrasound machine enables veterinarians to perform ultrasound examinations on cows and other large animals in field conditions.

Product Overview

This specialized medical device is designed for field use with large animals, featuring a portable and lightweight design for maximum convenience. The ultrasound machine utilizes high-frequency sound waves to generate detailed images of internal structures, aiding in the diagnosis of various health conditions.

A handheld transducer is placed on the animal's skin, emitting sound waves that reflect back and are converted into real-time images. This technology is particularly valuable for reproductive assessments including pregnancy detection, as well as identifying internal injuries or diseases.

Built with rugged durability to withstand field conditions, these machines may include advanced features such as wireless connectivity and enhanced imaging capabilities, providing veterinarians with accurate diagnostic information for appropriate treatment decisions.

Technical Specifications

Parameter	Specification
Scanning mode	electronic linear array
Display mode	B/PWD
Central frequency	8.0MHz
Depth	20-100mm
Weight	350g
Power consumption	<1.8W
Image to screen ratio	>85%
Frame rate	up to 15FPS
Gray	256
Belt clamp	yes
Probe cable length	1.7m
Working system	Android or Windows
USB connector	type-C or type-A

Applications

Bovine/Equine reproduction

Standard Configuration

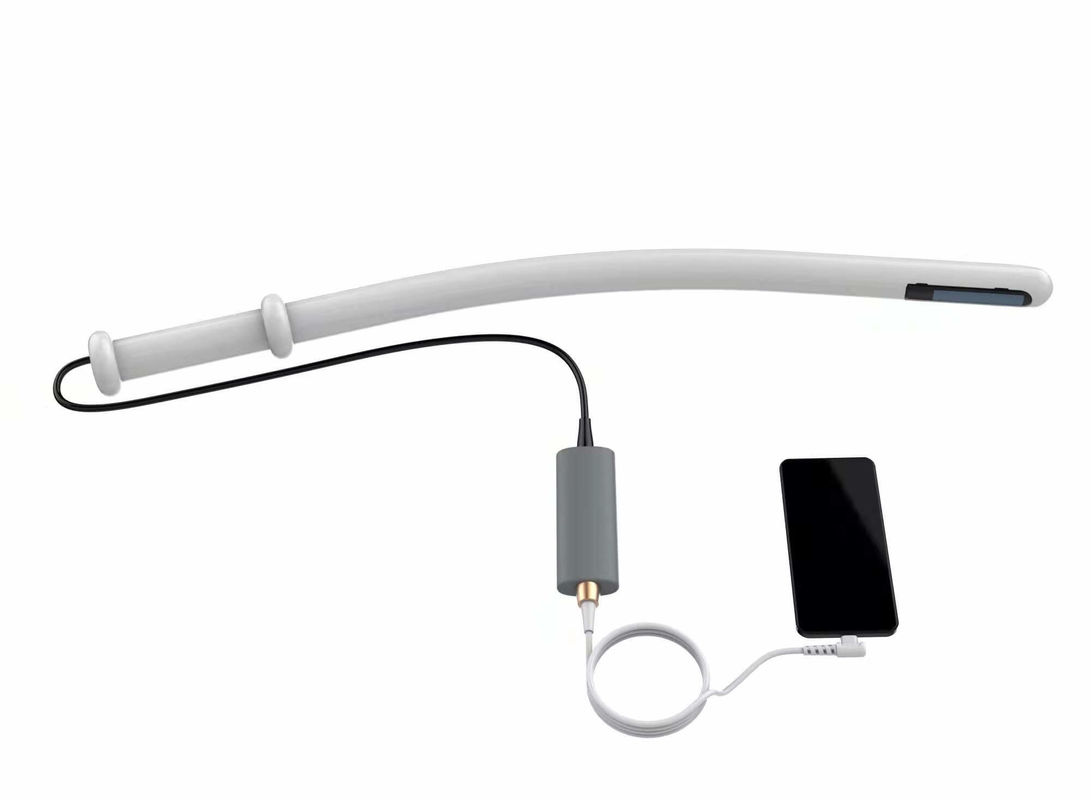

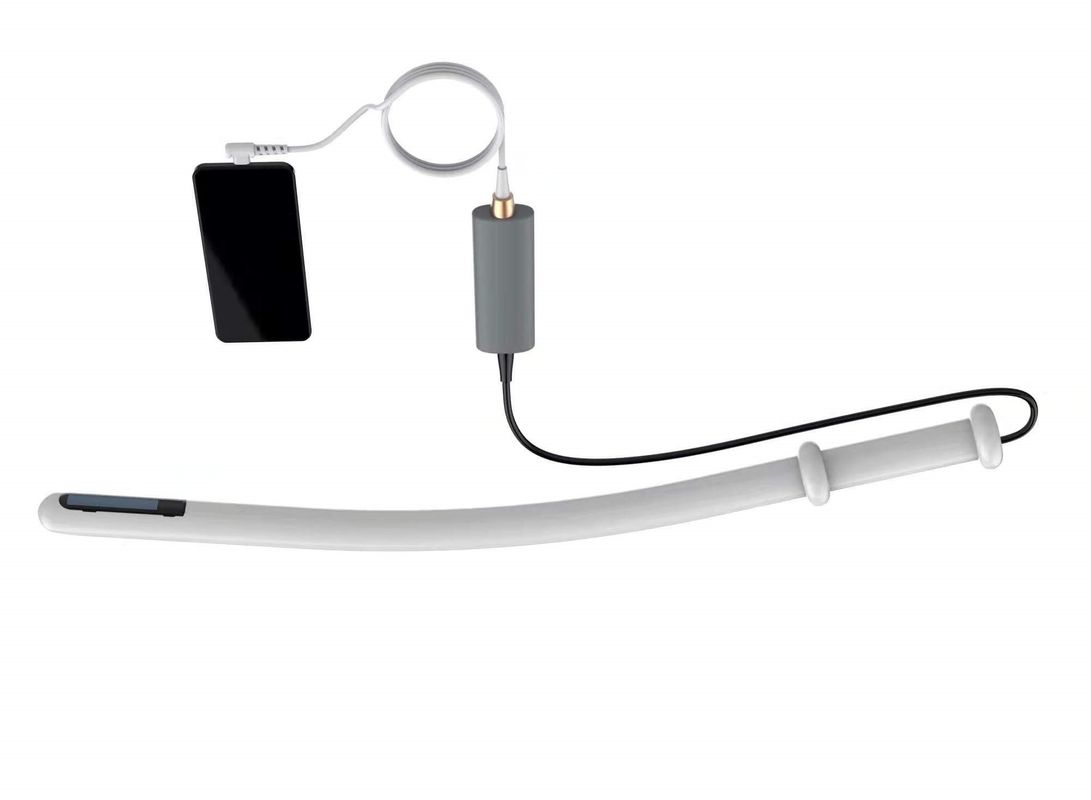

Veterinary Ultrasound Machine - Long Shaft Rectal Probe UL8-4T
