Ergonomic Console 64 Channel Portable Veterinary Ultrasound Machine For Animals

Ergonomic Console 64 Channel Portable Veterinary Ultrasound Machine For Animals

Ergonomic Console Veterinary Ultrasound Machine

64 Channel portable ultrasound machine for animals

Ergonomic Console portable ultrasound machine for animals

Place of Origin:

China

Brand Name:

Golead

Certification:

CE, ISO13485

Model Number:

T5V

Contact Us

Request A Quote
Product Details
Product Name:
Newly Designed Ergonomic Console Veterinary Ultrasound Machine Based On Win7
Display:
21.5'' LCD
Element:
128
Channel:
64 Channel
Display Mode:
B, PW, B/PW, B/C/PW, B/CW, B/C/CW
Battery:
13,600mAh
Continuous Scanning Time:
> 1.5 Hours
Gray Scale:
256
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Packaging Details
carton box
Delivery Time
2 working days
Payment Terms
T/T
Supply Ability
1,000 units per month
Product Description

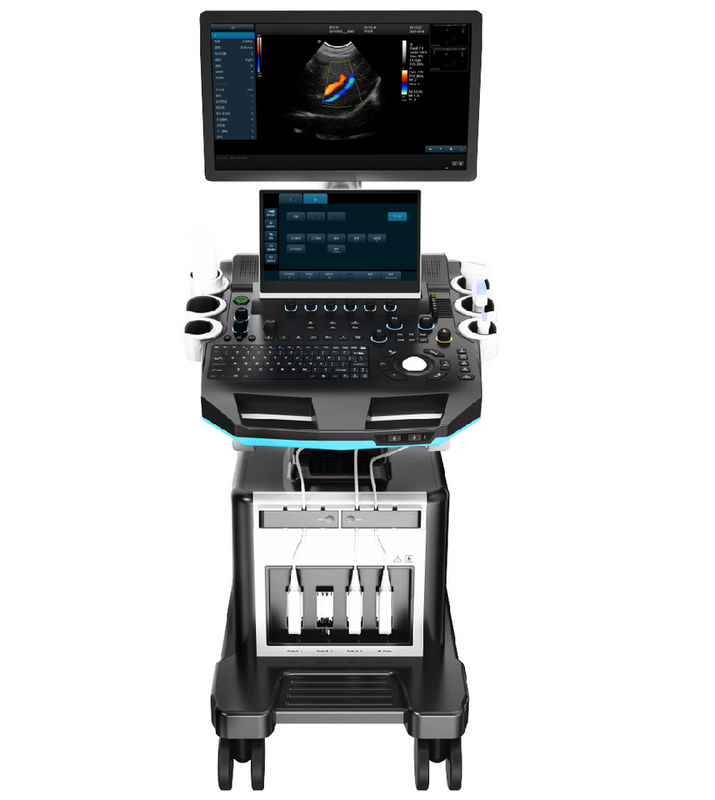

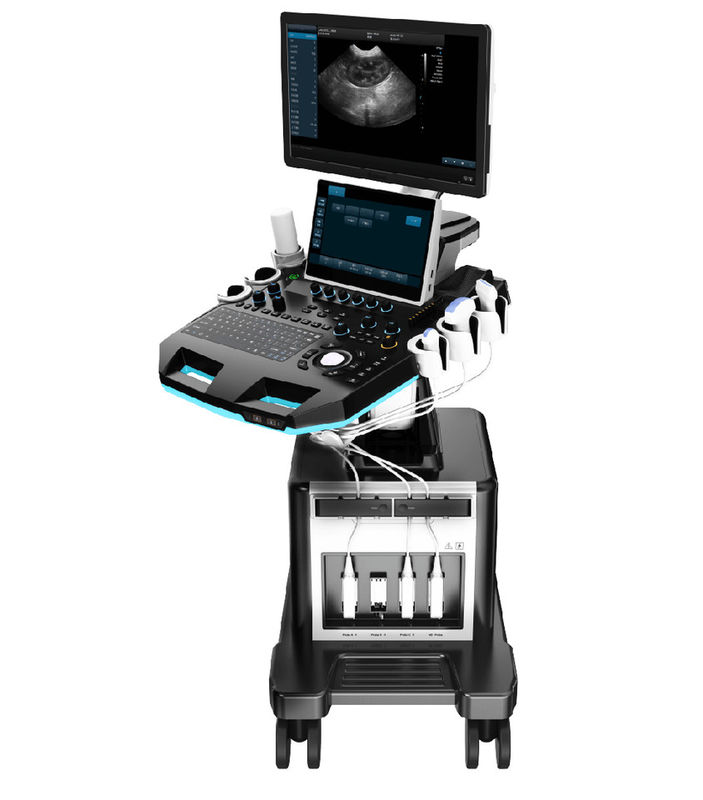

Newly Designed Ergonomic Console Veterinary Ultrasound Machine Based on Win7

Overview
Portable veterinary ultrasound machine P60V used advanced and stable PC system, combing excellent images, all-round functions, rich image management software together to meet the needs of various animal groups in different environments. The built-in battery with large capacity imported chip, dual probe interface, canbe configured with a variety of probes to satisfy the needs of different examination modes


Parameters

1. Veterinary Color Doppler Ultrasound System
1.1 Main structure:Trolley type, double screen

2. Applications and Report

2.1 To meet the examination and diagnosis needs of pet hospital and scientific research institutions in the digestive system, reproductive system, urinary system, physical examination, etc.

3. Main Specifications

3.1. Full Digital Color Doppler Ultrasonic Mainframe

3.2. Digital Beam Enhancer
3.3. Multiple-beam synthesis
3.4. Full-Digital 2D gray scale imaging
3.5.Tissue harmonic imaging(THI)
3.6.B/C Real-time two synchronous imaging
3.7.M mode imaging
3.8.Anatomic M mode imaging (Sampling line≥3)
3.9.Color Doppler imaging(C,PDI,DPDI)
3.10.Spectral Doppler imaging(PW,HPRF PW,CW)
3.11.Tissue Doppler imaging (TVI, M-mode, spectral imaging, etc.)
3.12.Four-dimensional supersonic image formation
3.13.★Contrast Tuned Imaging (optional)
3.14.★PView wide field imaging (optional)
3.15.Space compound imaging (application to Abdominal, GYN, vessel, superficial small organs, can be dual image contrast display at same time)
3.16.Frequency & Focus Compound
3.17.Extended field-of-view(EFOV)
3.18.Real-time dual image contrast display
3.19.B/C/D Real-time three synchronous imaging
3.20.Speckle Reduce imaging(SRI)
3.21.Elastography(optional)
4.★Operation Interface: support 10 different languages

5. System Specification

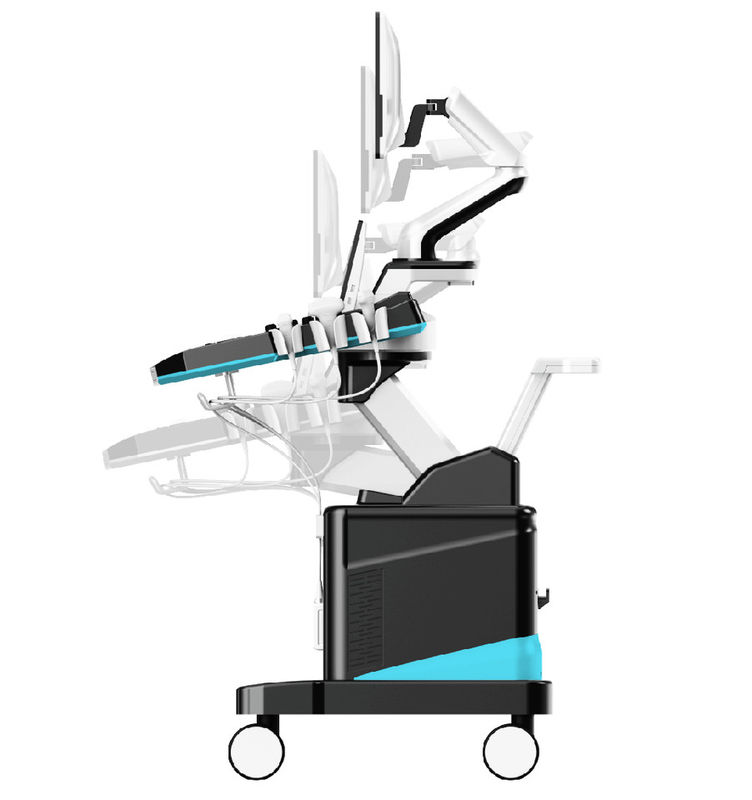

5.1 Monitor:21.5 inch high resolution medical LCD monitor, adjustable angle

13.3 inch touch screen, support multi-touch

5.2 ★Probe connectors: ≥4 active, support all probes

5.3.2D imaging mode

1)Full Digital Beamformers

2)Digital full dynamic focusing, digital variable aperture and dynamic trace change, A/D≥15 bit

3)Receiving mode: transmitting and receiving channel ≥1024, multi-signal parallel processing

4)Line density: ≥512, visible and adjustable

5)Under B mode, focus number≥10 level, focus position continuously adjustable

6)TGC:8 segment adjustable

7)Gain: B/M/D separately adjustable,≥100dB

8)★Dynamic range:≥180dB

9)★Max scanning depth:≥360mm

10)Grey scale:0-67, visible and adjustable

11)Sound power:1%-100%

12)Linear array probe two-dimensional independent deflection

13)ZoomPIP(1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 10 times)

5.4. Color Doppler Imaging mode

1)Imaging: including velocity, velocity variance, energy, direction energy display, etc

2)Display mode:B/C,B/C/M,B/POWER,B/C/PW

3)Line density≥3 level

4)Color hiding technology: without back to B mode can hide C mode, only color speed ruler display

5)Blood flow graph,color flow profile to measure intravascular velocity

5.5. Spectral Doppler Imaging

1)Display: full screen, duplex / triplex (PW only)

2)Gain:≥100dB

3)Velocity ≥4 level adjustable

4)Max scanning speed:PWD:Positive or negative blood flow velocity≥7.6m/s;

CWD:blood flow velocity≥20.0m/s,min:≤5 mm /s(Nonnoise signal);

5)Zero shift adjustable ≥8 level

6)Display mode:B, PW, B/PW, B/C/PW, B/CW, B/C/CW, etc

7)Spectrum envelope function, Manual Measurement

8)Display control: reverse, zero shift, B refresh, D extension, B/D extension, etc

9)Smart Doppler technology: freely switch between real-time B+CFM mode and real-time PW mode

5.6.★PView wide field imaging (optional)

1)High-resolution display, length can up to 50cm

2)Imaging support forward erasure, no need to re-imaging

3)With two dimensional wide view imaging mode and color wide view imaging mode

5.7.Probe: wideband with frequency conversion, independent frequency conversion under B and CFM

1)Fundamental Frequency conversion≥3 level;

2)1.Convex probe

Fundamental frequency:nine levels frequency conversion

2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz,

Harmonic Frequency:4.0MHz/4.6MHz/5.0MHz,three levels frequency conversion

2. Linear probe

Fundamental frequency:nine levels frequency conversion 4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz

Harmonic Frequency:8.0MHz/9.2MHz/10.0MHz,three levels frequency conversion

3. Phased array probe

Fundamental frequency:nine levels frequency conversion 1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz

Harmonic Frequency:3.4MHz/3.8MHz/4.2MHz,three levels frequency conversion

4. High frequency phased array probe

Fundamental frequency: eight levels frequency conversion: 3.0MHz/3.5MHz/4MHz/5MHz/5.4MHz/6MHz/7MHz/8MHz,

Harmonic Frequency: 6MHz/7MHz/8MHz,three levels frequency conversion

5.8 Micro-convex probe

Fundamental frequency:eight levels frequency conversion

3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz

Harmonic Frequency: 6.0MHz/7.0MHz/8.0MHz,three levels frequency conversion

5.9 Technical requirements for electronic convex probe:

Frequency:2.0-5.4 MHz,lateral resolution: ≤2 (depth≤80), ≤3mm (80<depth≤130)

axial resolution: ≤1 (depth≤80), ≤1mm (80<depth≤130)

dead zone:≤3mm; Geometric position accuracy: broadwise:≤5%; lengthwise:≤5%

detecting depth≧240 mm

5.10 Technical requirements for electronic linear probe

Frequency: 4.0-13.3MHz, lateral resolution: ≤1 (depth≤40), axial resolution: ≤0.5(深度≤50),dead zone:≤3mm,Geometric position accuracy: broadwise: ≤4%; lengthwise: ≤2%

detecting depth≧100 mm

6 Measurement / Analysis and Reports

6.1 General measurement: distance, area, ellipse, cross line, angle, distance ratio, volume, Volume (ellipse), area ratio, diameter, joint angle.

6.2 Specialized Measurement

1)Cardiac:Automatic spectrum envelope, LV, Main Pulmonary artery diameter, RVEDd, RVEDs, LVM, LAV, HR, MVF, AO, AR, LVOT, TVF, Pulmonic valve, Pulmonary vein, RV, Doppler fetal heart sound, LVET, LVM, LVMI, AV

2)Vascular: carotid intima (IMT), length stenosis ratio, area stenosis ratio, IMT (back wall), IMT (front wall)

3)★OB:Canine: GSD, CRL, HD, BD; Feline: BD, HD; Swine:HLA, SLA;

Bovine: CRL, BTD, BUD; Ovine: SCRL; Equine: GSD(H), ESD (V)

4) Urinary measurement:Prostate, residual urine, left kidney, right kidney, left adrenal gland, right adrenal gland, left testis, right testis, left seminal vesicle, right seminal vesicle.

5)abdomen measurement: liver, common hepatic duct, diameter of portal vein, gallbladder, common bile duct, pancreas, spleen, abdomen aortic diameter, kidney.

6)Organella.



Applications

Bovine, Equine, Ovine, Swine, etc


Standard configuration

Veterinary Ultrasound Machine with Mirco-convex Probe and linear probe

Optional
Covex probe
Rectal linear probe
Phased array probe
