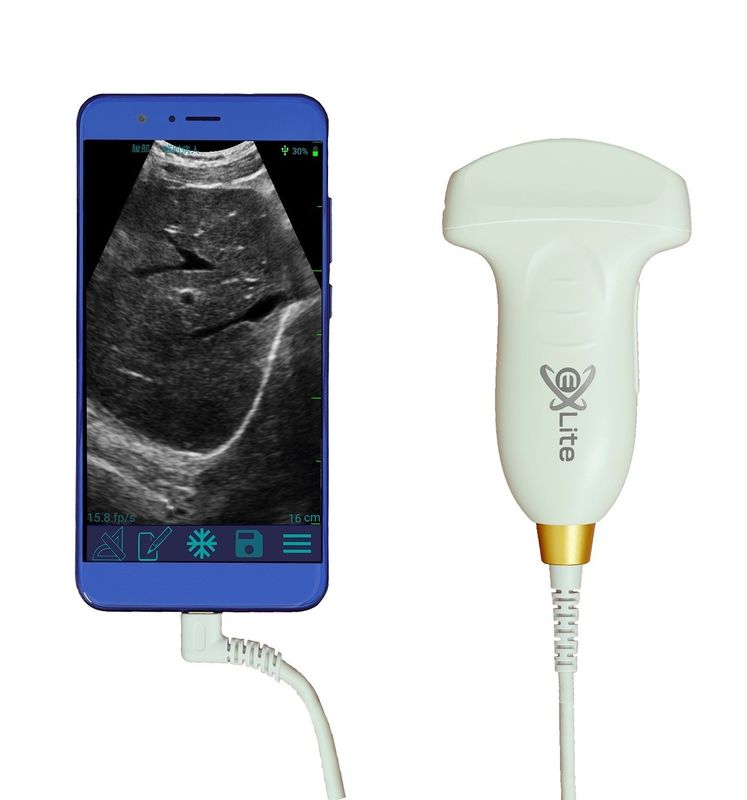

Portable Veterinary Ultrasound Machine Convex Probe for Swine
Product Interview
Veterinary Ultrasound Machine UC5-2E has a frequency range of 2-5MHz and 80 elements, making it ideal for abdominal and reproductive system examinations in swine. The B/PWD imaging mode provides both black and white and pulsed wave doppler imaging, making it easier to diagnose and evaluate blood flow in the examined area.
The UC5-2E probe is lightweight, weighing only 180g, and has a low power consumption of less than 1.7W, ensuring efficient usage and longer battery life. The probe provides a depth of up to 24cm, allowing for accurate imaging of internal organs and tissues. The frame rate of 11-13 fps provides real-time imaging, making it easier to visualize moving structures.
The PA10U swine model is compatible with both type-C and type-A USB connectors and can be used with Android or Windows operating systems. The 15-month warranty provides additional peace of mind for veterinary professionals.
Overall, the PA10U swine model with the UC5-2E probe is an excellent option for veterinary professionals looking for a reliable and comprehensive ultrasound system for swine examinations.
Parameters
| Scanning mode | electronic convex array |
| Display mode | B/PWD |
| Frequency | 2/3.5/5MHz |
| Depth | 6 to 24cm |
| Weight | 180g |
| Power consumption | <1.8W |
| Image to screen ratio | >85% |
| Frame rate | 15FPS |
| Gray | 256 |
| Probe cable length1 | 1.7m |
| USB cable length | 1.6m |
| Working system | Android or Windows |
| Connector | type-C or type-A |
Applications
Swine reproduction
Standard configuration
Veterinary Ultrasound Machine - Curvelinear Probe UC5-2E
