Curve Linear Rectal Probe Handheld Ultrasound Veterinary Machine 3.5MHz 80mm

Name: Curve Linear Rectal Probe Handheld Ultrasound Veterinary Machine 3.5MHz 80mm
Brand: Golead Medical Group Co.,Ltd
SKU: UC5-2ET
Availability: InStock

Brand Name:	Golead
Model Number:	UC5-2ET
MOQ:	1 Unit
Delivery Time:	2 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO13485

Product Name:

3.5MHz 80mm Handheld Veterinary Ultrasound Machine Curvelinear Rectal Probe

Element:

Scanning Mode:

B/PWD

Working Frequency:

2.0MHz~5.0MHz

Battery:

Weight:

350g

Application:

Bovine/Equine

Connector:

Type-C Or Type-A

Gray Scale:

256

Warranty:

15 Months

Packaging Details:

carton box

Supply Ability:

1,000 units per month

Highlight:

Curve Linear Rectal Probe ultrasound veterinary machine

ultrasound veterinary machine 3.5MHz 80mm

handheld veterinary ultrasound 3.5MHz 80mm

Product Description

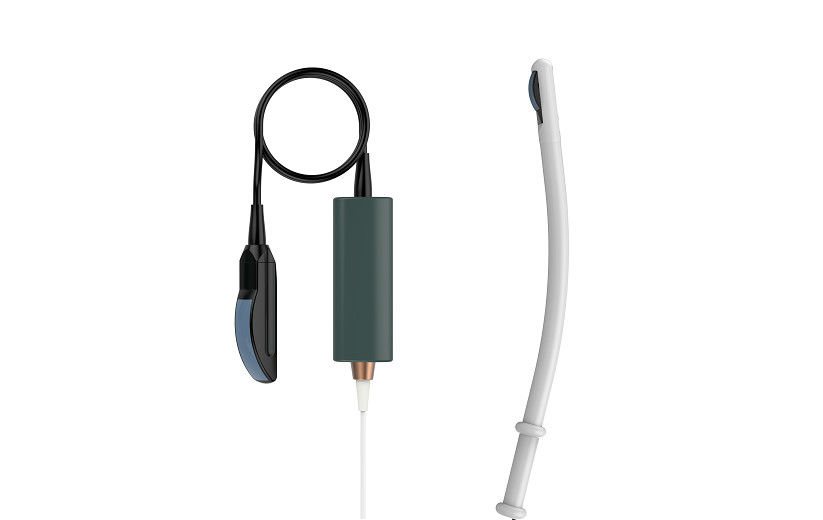

3.5MHz 80mm Handheld Veterinary Ultrasound Machine Curvelinear Rectal Probe

Product Interview

The 3.5MHz R=60mm 80-element curvelinear rectal probe is specifically designed for rectal examination in large animals and offers a frequency range of 2-5MHz. The B/PWD imaging mode provides both black and white and pulsed wave doppler imaging, allowing for comprehensive diagnostics.

At only 350g, the device is lightweight and easy to handle, making it ideal for use in the field. The low power consumption of less than 1.5W ensures longer battery life and efficient usage.

The belt clamp allows for secure placement of the device during examinations, while the frame rate of 10-15 fps provides real-time imaging. The probe cable length of approximately 1.7m and USB cable length of approximately 1.6m provide flexibility during usage.

Handheld Veterinary Ultrasound Machine UC5-2ET is compatible with both type-C and type-A USB connectors and can be used with Android or Windows operating systems. Finally, the 15-month warranty provides additional peace of mind for veterinary professionals.

Parameters

Scanning mode	electronic curvelinear array
Display mode	B/PWD
Frequency	2/3.5/5MHz
Depth	6 to 24cm
Weight	350g
Power consumption	<1.8W
Image to screen ratio	>85%
Frame rate	15FPS
Gray	256
Probe cable length1	1.7m
USB cable length	1.6m
Working system	Android or Windows
Connector	type-C or type-A

Applications

Bovine/Equine reproduction

Standard configuration

Veterinary Ultrasound Machine - Curvelinear Rectal Probe UC5-2ET
