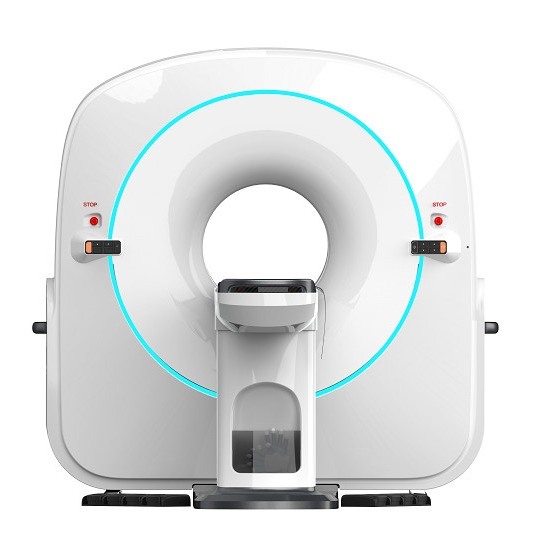

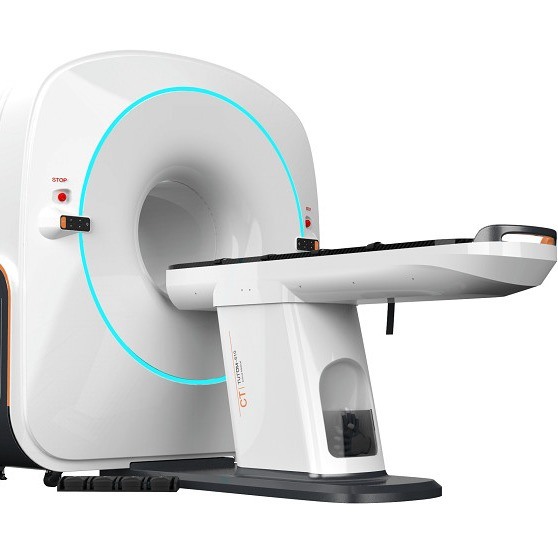

Veterinary Cone Beam CT Scanner for Small Animal Diagnostic Imaging
Overview
The TC-460 Veterinary Cone Beam CT Scanner is designed to provide high-quality three-dimensional diagnostic imaging for companion animals in veterinary hospitals and specialty clinics.
The system combines compact CBCT technology with fast image acquisition and intuitive software, helping veterinarians evaluate orthopedic disorders, dental diseases, nasal cavities, skull abnormalities and other complex anatomical structures.
Designed specifically for veterinary applications, the scanner offers efficient workflow, reduced installation space requirements and reliable diagnostic performance for small animal practices.
Advantages
Key Features
High-Resolution 3D Imaging
Provides detailed volumetric images for accurate diagnosis of bone structures and complex anatomical regions.
Compact Veterinary Design
Optimized for veterinary clinics with limited installation space while maintaining efficient clinical workflow.
Fast Image Acquisition
Supports rapid scanning to help reduce anesthesia duration and improve examination efficiency.
User-Friendly Software
Offers intuitive image reconstruction, multiplanar viewing and 3D visualization for clinical evaluation.
Optimized for Small Animals
Designed specifically for companion animals, providing positioning and imaging suitable for veterinary practice.
Stable Mechanical Structure
Ensures repeatable positioning and reliable image quality during routine examinations.
Technical Parameters:
| Configuration |
TUTOM TC-460 |
| Power requirements |
Input voltage |
Single phase AC220V |
| Supply frequency |
50Hz |
| Power capacity |
Not less than 3.5 kVA |
| Mechanical capacity |
Bed size |
Length, width and height: 1850mm×550mm×730mm, deviation±5% |
| Scanning frame size |
Length, width and height: 1670mm×810mm×1600mm, deviation±5% |
| Bed surface translation range |
0～800mm deviation±5% |
| Bed lifting range |
0～150mm deviation±5% |
| Bearing |
50kg |
| Electric power |
Maximum pulse fluoroscopic output electrical power |
1.875kW(15mA,125kV,10s) |
| Maximum continuous fluoroscopic output electrical power |
1.5kW(12mA,125kV,20s) |
| Standard pulse fluoroscopy output electrical power |
1.6kW(16mA,100kV,10s) |
| Maximum continuous fluoroscopic output electrical power |
1.4kW(14mA,100kV,20s) |
| Loading factors and control |
Tube voltage/kV |
50kV～125kV, adjust as per levels, adjustable steps of 1kV, deviation ≤±10% |
| Tube current/mA |
1mA～16mA, adjust as per levels, adjustable steps of 1mA, accuracy conforms to ±1mA |
| Loading time/ms |
24s, based on external trigger loading time |
| Imaging performance |
Imaging size |
307.2mm×245.7mm |
| Spatial resolution |
≥1.7lp/mm |
| Imaging time |
≤40s |
| Working environment requirements |
Ambient temperature |
10℃～40℃ |
| Relative humidity |
30%～75% |
| Atmospheric pressure |
70kPa～106kPa |
| Transportation and storage conditions |
Ambient temperature |
-20℃～55℃ |
| Relative humidity |
30%～93% |
| Atmospheric pressure |
70kPa～106kPa |
Clinical Applications
The veterinary CT scanner is suitable for a wide range of diagnostic examinations, including:
- Skull imaging
- Dental examinations
- Nasal cavity evaluation
- Thoracic imaging
- Pulmonary assessment
- Abdominal imaging
- Orthopedic diagnosis
- Joint evaluation
- Fracture assessment
- Spinal disorders
- Neurological examinations
- Tumor detection
- Pre-operative planning
- Post-operative evaluation
Applicable animals include:
- Dogs
- Cats
- Rabbits
- Exotic pets
- Small mammals
Why Veterinary Clinics Choose TC-460
- Dedicated veterinary imaging solution
- Compact footprint
- High-resolution CBCT imaging
- Easy operation
- Low maintenance design
- Suitable for referral clinics
- Reliable diagnostic workflow
- CE certified
- OEM available
Why Choose Golead Medical
- Professional veterinary imaging supplier
- CE certified products
- Experienced OEM manufacturer
- Global distributor network
- Technical support team
- Fast spare parts supply
- Export experience
- Customized solutions for veterinary hospitals
Installation Requirements
Before installation, customers should prepare:
- Stable single-phase AC220V power supply
- Dedicated installation room
- Radiation shielding according to local regulations
- Proper ventilation
- Stable network connection for image management
- Space for equipment maintenance
We provide:
- Online installation guidance
- Remote software support
- Clinical application training
- Spare parts supply
- Operation manuals
- Technical consultation
- Warranty service
- Software updates
Packing and Shipping:
Packaging and Shipping Veterinary Medical Equipment
At ABC Veterinary Medical Supplies, we understand how important it is to ensure that medical equipment arrives in perfect condition. We take every step necessary to ensure that every product is packaged and shipped correctly with the utmost care.
Packaging
We use corrugated cardboard boxes, bubble wrap, and foam padding to ensure that veterinary medical equipment is securely packaged. We also use labels to indicate which products are inside the box. We make sure all packaging materials are of the highest quality and are designed to protect the items inside.
Shipping
We ship all veterinary medical equipment via an insured carrier. All shipments are tracked and delivered within 2-3 business days. We make sure to include detailed shipping information with every order.
Final Steps
Once the veterinary medical equipment is packaged and shipped, we take the extra step of checking in with the customer. We make sure that they received the shipment and that the items are in perfect condition.
FAQ:
Q1. Which animals is the scanner designed for?
The TC-460 is designed primarily for dogs, cats, rabbits and other small companion animals.
Q2. What examinations can be performed?
The system is suitable for orthopedic imaging, dental diagnosis, skull evaluation, nasal cavity assessment, fracture diagnosis and surgical planning.
Q3. Is anesthesia required?
Many CT examinations require appropriate sedation or anesthesia to minimize motion and obtain diagnostic-quality images. The decision depends on the animal's condition and the examination protocol.
Q4. What power supply is required?
The standard configuration operates on single-phase AC220V power.
Q5. Do you provide installation support?
Yes. We provide remote installation guidance, technical documentation and after-sales support.
Q6. Can you provide OEM service?
Yes. OEM and private label cooperation are available for qualified partners.
Q7. What warranty do you provide?
The standard warranty is 12 months, with technical support and spare parts available after purchase
