Veterinary Medical Equipment
Created with Pixso. Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg

Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg

Brand Name: Golead
Model Number: DM6A
Detail Information
Place of Origin:
China
Certification:
CE, ISO13485
Product Name:
Reliable Trolley Veterinary Anesthesia System Pet Clinical Equipment
Display:
10.4"Colorful TFT LCD Touch Screen
Application:
Small And Big Animal
Vaporizer:
2 For Standard
Warranty:
1 Year
Weight:
60kg
Ventilation Mode:
IPPV, A/C, PCV, PSV, SIMV, SIGH, MANU
ACGO:
Standard
Highlight:

Reliable Trolley veterinary clinic equipment

,

portable anesthesia machine veterinary 60kg

,

Reliable Trolley portable anesthesia machine veterinary

Product Description

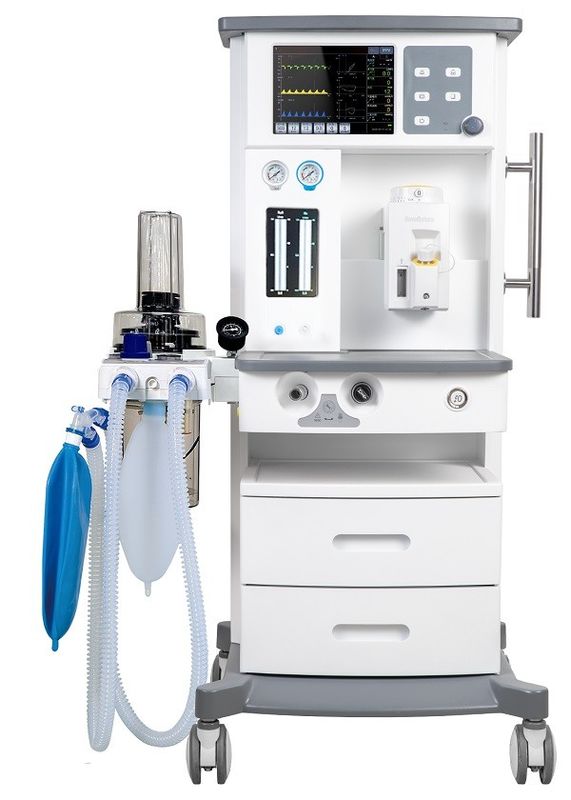

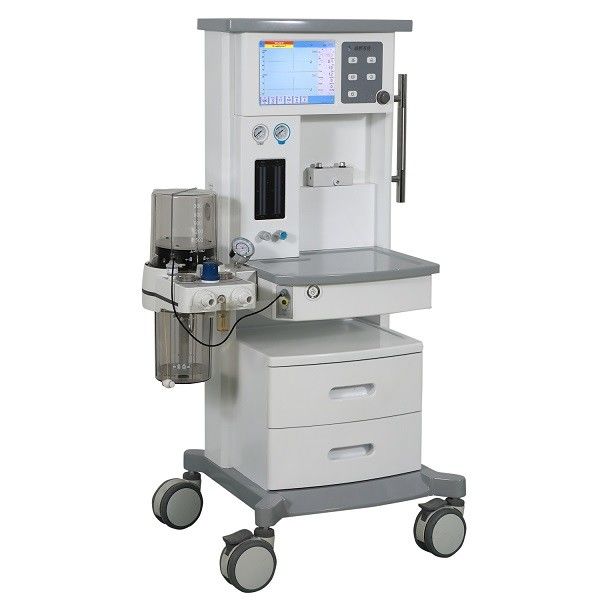

Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Veterinary Anesthesia System Pet Clinical Equipment
Overview

The DM6A model of Veterinary Anesthesia System is designed to provide safe and controllable inhalation anesthesia for animals, and has received a good reputation from clients around the world. Anesthesia is an essential part of veterinary medicine that allows for pain-free surgery and procedures, and it's important to have a reliable and efficient anesthesia system to ensure the safety and comfort of the animals.

This system accommodates a wide range of animals, from small to large and from simple to complex cases. This flexibility is crucial in veterinary medicine, as different species and cases require different levels of anesthesia and monitoring. By providing rapid control of anesthetic depth with little resistance to respiration, the Veterinary Anesthesia System helps ensure that animals are kept safe and comfortable throughout their procedures.

Key Features
  • 10.4" touch screen with various display areas
  • Electronic flowmeter to measure fresh gas flow to animals

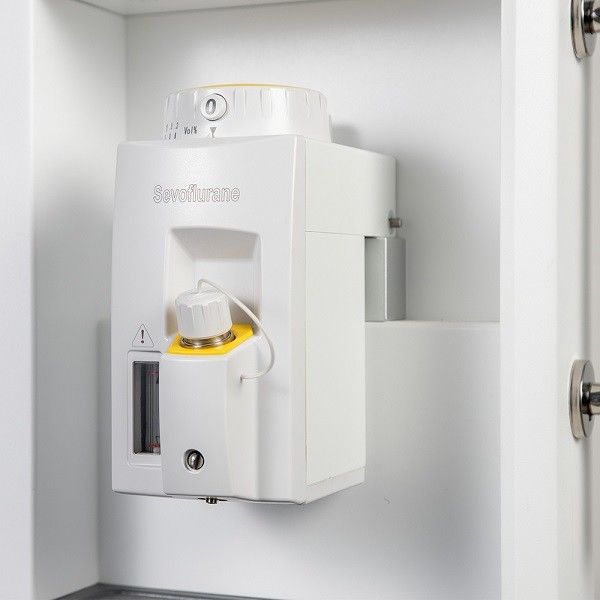

  • Vaporizer with temperature, pressure, flow compensation, and self-lock functions for safety
  • Real-time pressure-time and flow-time loop oscillogram
  • High precision ETCO2 and O2 concentration detection
  • Electronic PEEP for precise parameter adjustment
  • Screen displays both manual and mechanical ventilation modes
  • Suitable for animals weighing up to 200KG
  • Optional features include ETCO2 module and Anesthesia Gas Scavenging System (AGSS)
Technical Specifications
Parameter Value Range
Flowmeter O2 0.1~10L/min
Flowmeter N2O 0.1~10L/min
Rapid oxygen supply 25L/min~75L/min
Tidal volume (Vt) 0, 20 mL~1500 mL
PEEP 0cmH2O~20cmH2O
Frequency 1/min~100/min
I:E Ratio 4:1~1:8
Pressure triggering sensitivity (Ptr) -20 cmH2O~20 cmH2O (Based on PEEP)
Flow trigger sensitivity (Ftr) 0.5 L/min~30 L/min
Pressure control (PC) 5 cmH2O~60 cmH2O
SIGH 0(off) 1/100~5/100
Pressure limit 20 cmH2O~100 cmH2O
Apnea ventilation OFF, 5s~60s
Clinical Application
Veterinary anesthesia machine in clinical setting showing professional medical equipment for animal care
