3.6MHz Cardiac Wireless Ultrasound Transducer For Emergency

Name: 3.6MHz Cardiac Wireless Ultrasound Transducer For Emergency
Brand: Golead Medical Group Co.,Ltd
SKU: Lite31P
Availability: InStock

Brand Name:	Golead
Model Number:	Lite31P
MOQ:	1 Unit
Delivery Time:	2 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO13485

Product Name:

3.6MHz Cardiac Wireless Ultrasonic Transducer Probe For Emergency

Element:

128

Scanning Mode:

Electronic Phased Array

Frequency:

2/3.6/5MHz

Cineloop:

100 Frames

Language:

English

Display Mode:

B/C/M

Image Storage Format:

DICOM, BMP, PNG, JPEG

Battery:

3000 MAh, Maximum 1.5-hour Continuous Use

N/W:

220g

G/W:

480g

Warranty:

1 Year

Packaging Details:

carton box

Supply Ability:

1,000 units per month

Highlight:

3.6MHz wireless ultrasound transducer

cardiac wireless ultrasound transducer

3.6MHz cardiac ultrasound transducer

Product Description

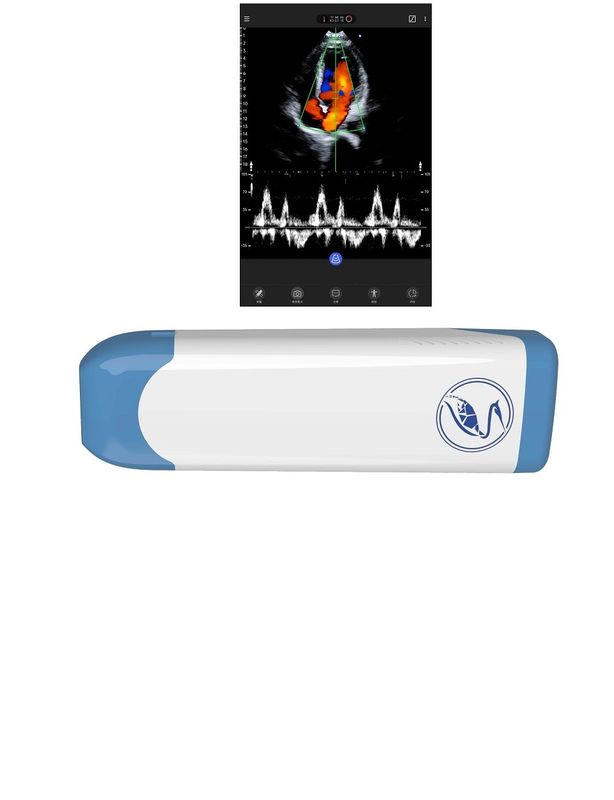

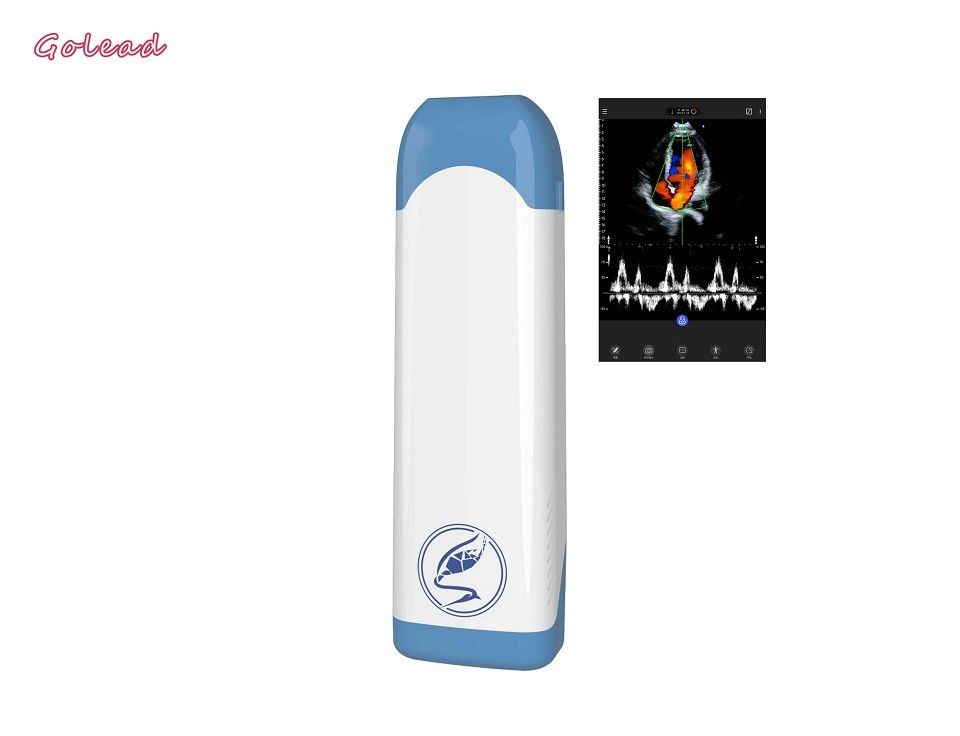

3.6MHz Cardiac Wireless Ultrasound Transducer For Emergency

Product Overview

The wireless ultrasound probe Lite31P is an innovative and versatile diagnostic tool designed to acquire and display high-quality ultrasound data in real-time. Its compact and portable design, combined with its software-controlled interface, provides users with a convenient and efficient diagnostic solution that can be easily used in a range of clinical settings.

The imaging system software is available as an app that can be downloaded onto commercial off-the-shelf (COTS) Android or iOS mobile devices, providing users with a user-friendly touch-based interface that is easy to navigate. The system utilizes wireless transducers that communicate with the mobile device via Wi-Fi, eliminating the need for cables and providing greater flexibility during examinations.

The Lite31P features a built-in battery, multichannel beamformer, prescan converter, and Wi-Fi components, ensuring accurate and reliable imaging capabilities at all times. The system is suitable for a wide range of clinical applications, including emergency situations, clinics, and outdoor inspections.

Technical Specifications

Parameter	Specification
Scanning mode	Electronic Phased Array with 128 elements
Display mode	B/C/M
Central frequency	3.6MHz
Depth	189mm
Zoom	4 times
Beams	16 parallel
Image Adjust	Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer
Measure	Length, Area, Circumference, Angle, Trace
Gray	256
FPS	8 to 30 frames
Packing Dimension	25519060mm
Working System	iPhone, iPad, Android Smartphone, Android Tablet

Primary Application

Cardiac imaging and diagnostics

Package Contents

Handheld Wireless Ultrasound Probe - Lite31P Sector Transducer
Internal Battery
Charging Cable
User Manual
Wireless Charger

Clinical Imaging
