Place of Origin:
China
Brand Name:
Golead
Certification:
CE, ISO13485
Model Number:
H35L
Contact Us

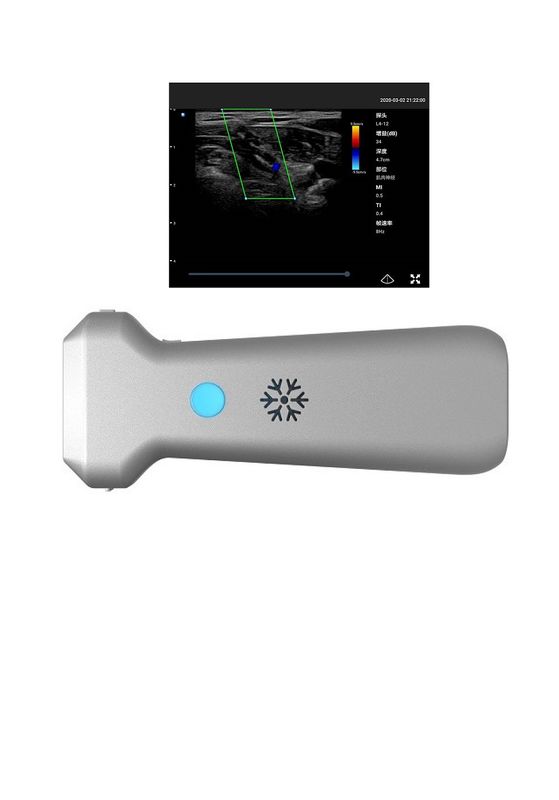

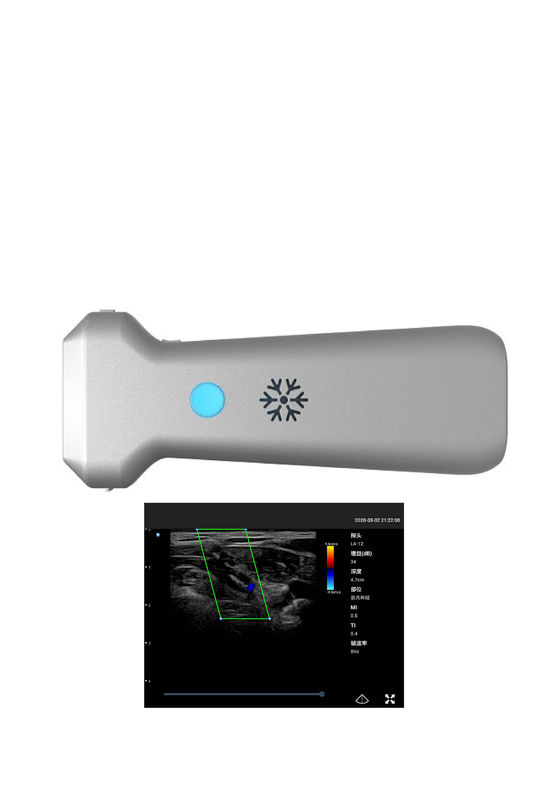

6000 mAh Internal Battery Wireless Ultrasound Probe Linear Probe Ultrasound
DESCRIPTION
The H35L Wireless Ultrasound Probe is a state-of-the-art device that uses cutting-edge technology to provide superior imaging capabilities. With its ultra-portable design and user-friendly interface, this device is ideal for healthcare professionals who need to perform ultrasound procedures in a variety of settings.
One of the key features of the H35L is its ability to support two different probes, including convex and linear, which makes it a versatile tool for a wide range of diagnostic applications. Additionally, the device includes specialized application packages that can automatically measure certain parameters, helping healthcare professionals to make accurate diagnoses quickly and easily.
The H35L utilizes advanced image processing technology, including spatial composite imaging and speckle reduction, which allows for improved response times and image quality. The device also supports GPU technology, enabling real-time low-latency image processing at up to 30 frames per second.
Another notable feature of the H35L is its phase inversion tissue harmonic imaging technology, which provides clear imaging even in challenging patients. This feature enhances the confidence of medical staff when diagnosing and treating patients, making it an essential tool for any healthcare practice.
PARAMETERS:
| Scanning mode | Electronic Linear Array with 128 elements |
| Display mode | B/C/M/PW/PD |
| Central frequency | 8.3MHz |
| Depth | 12.6cm |
| Zoom | four times |
| Channel | 32 |
| Dynamic Range | 180dB |
| Sampling Rate | 50MHz |
| Gray | 256 |
| FPS | from 8 to 30 |
| Packing Dimension | 255*190*60mm |
| Video Storage | MPEG-4 |
APPLICATIONS
Vascular, small parts, MSK, nerve
CONTENT INCLUDED
Wireless Ultrasound Probe – H35L
Internal Battery
Charging Cable
User Manual
Wireless Charger
CLINICAL IMAGE
