Place of Origin:
China
Brand Name:
Golead
Certification:
CE, ISO13485
Model Number:
Lite31L
Contact Us

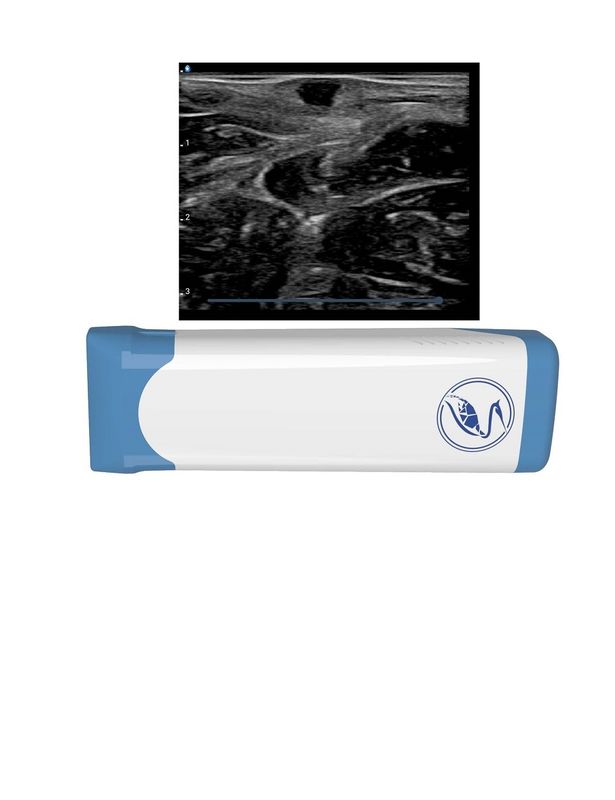

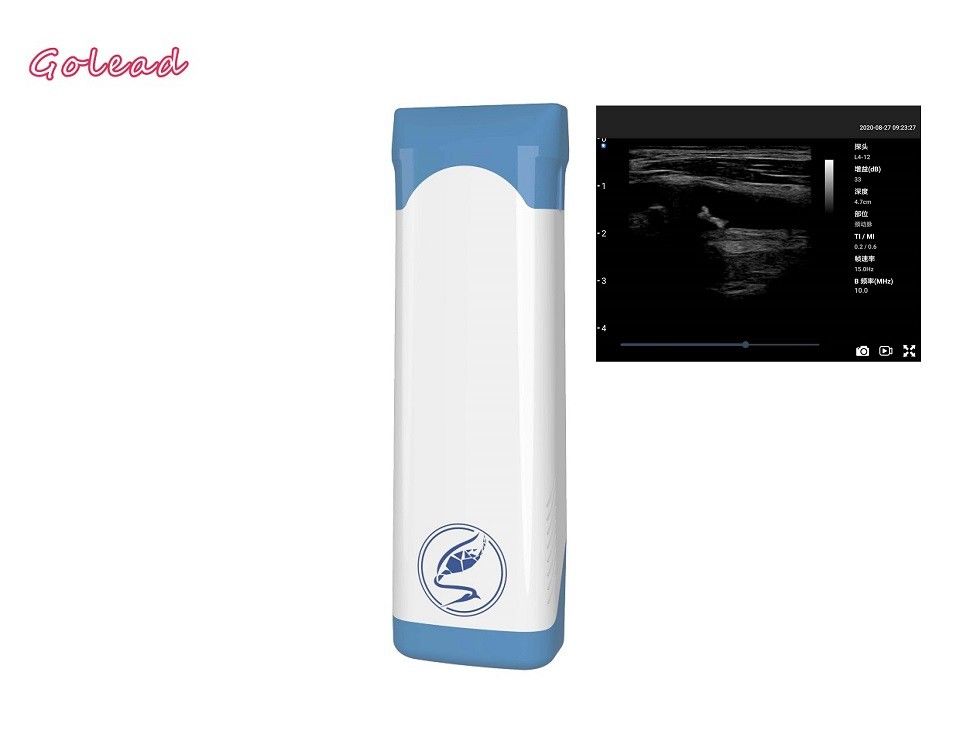

12MHz Handheld Wireless Ultrasound Probe for Outdoor Inspections
Overview
The Lite31L wireless ultrasound probe is a cutting-edge device that delivers high-resolution and real-time ultrasound data through a mobile device. The device is portable and designed for use in a range of clinical settings, providing healthcare professionals with a flexible and convenient diagnostic tool.
The system operates as a user-friendly app on a commercial off-the-shelf (COTS) smart device, making it easy to use and accessible for healthcare professionals on the go. The device uses Wi-Fi-based technology to communicate with the smart device, eliminating the need for cables or wires.
The Lite31L wireless ultrasound probe is designed with safety in mind, and the expected positions of the operator, patient, and other persons near the equipment are considered during normal use. The imaging system includes a built-in battery, multichannel beamformer, prescan converter, and Wi-Fi components, ensuring efficient and reliable operation.
The device is suitable for use in emergency situations, clinics, and outdoor inspections, providing reliable and efficient diagnostic capabilities in a range of settings. Its powerful intelligent terminal platform and expansion functions provide flexibility and adaptability to the needs of healthcare providers.
Parameters:
| Scanning mode | Electronic Linear with 128 elements |
| Display mode | B/C/M/PW/PD |
| Central frequency | 8.3MHz |
| Depth | 12.6cm |
| Line density | 256 scan lines |
| In-plane needle enhancemen | Supported |
| Image Adjust | Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF |
| Measure | Length, Area, Circumference, Angle, Trace |
| Annotation | Yes |
| FPS | 8-30 frames |
| Packing Dimension | 255*190*60mm |
| Working System | iOS, Android |
Applications
Breast, Pediatrics, Small Parts, MSK, Thyroid, Vascular, Carotid
Standard Configuration
Wireless Handheld Ultrasound Scanner – Lite31L Linear Transducer
Internal Battery
Charging Cable
User Manual
Wireless Charger
CLINICAL IMAGE
