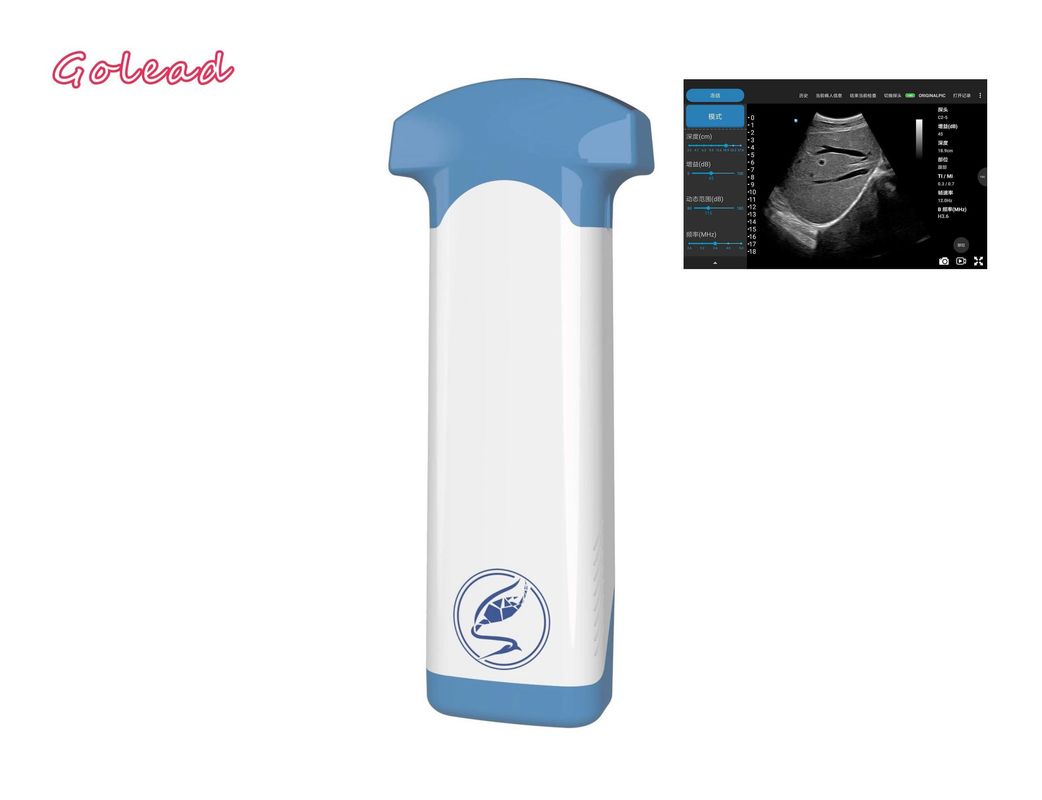

Frequency 2 To 6 MHz IOS Wireless Ultrasound Probe Depth 37.8cm

Name: Frequency 2 To 6 MHz IOS Wireless Ultrasound Probe Depth 37.8cm
Brand: Golead Medical Group Co.,Ltd
SKU: Lite31C
Availability: InStock

Brand Name:	Golead
Model Number:	Lite31C
MOQ:	1 Unit
Delivery Time:	2 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO13485

Product Name:

IOS System 2 To 6 MHz Wireless Ultrasound Probe Chinese Manufacturer

Scanning Mode:

Electronic Convex Array

Element:

128

Frequency:

2.0-6.0MHz

Cineloop:

100 Frames

Language:

English

Display Mode:

B/C/M/PW/PD/PWD

Image Storage Format:

JPEG/BMP/PNG/MPEG-4

Battery:

3000 MAh, Maximum 2-hour Continuous Use

N/W:

248g

Packaging Details:

carton box

Supply Ability:

1,000 units per month

Highlight:

2 to 6 MHz Wireless Ultrasound Probe

IOS Ultrasound Probe 37.8cm

2 to 6 MHz IOS Ultrasound Probe

Product Description

Frequency 2 To 6 MHz IOS Wireless Ultrasound Probe Depth 37.8cm

Product Overview

The Lite31C wireless ultrasound probe is a portable, general-purpose diagnostic tool that utilizes Wi-Fi technology to communicate with commercial mobile devices such as smartphones and tablets. This innovative device acquires and displays high-resolution, real-time ultrasound data through an intuitive touch-based interface.

The imaging system software operates as an app on mobile devices, providing healthcare professionals with easy access to diagnostic capabilities on the go. Wireless transducers enable seamless communication with mobile devices, offering flexibility to export and display ultrasound images across various portable personal devices.

Featuring a built-in battery, multichannel beamformer, prescan converter, and Wi-Fi components, the system operates independently of external power sources. Its lightweight, portable design makes it ideal for transportation to different clinical settings while providing clear, accurate imaging for diverse diagnostic applications.

Technical Specifications

Parameter	Specification
Scanning mode	Electronic Convex Array with 128 element
Display mode	B/C/M/PW/PD
Frequency	2/3.6/5MHz
Depth	37.8cm
Scan angle	60 degree
Head radius	60mm
Image Adjust	Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer
Measure	Length, Area, Circumference, Angle, Trace, Obstetrics
Annotation	Supported
FPS	8-30
Packing Dimension	25519060mm
Working System	iOS, Android

Applications

Abdomen
Gynecology
Obstetric
Urology
Kidney

Package Contents

Wireless Ultrasound Probe - Lite31C Convex Probe
Internal Battery
Charging Cable
User Manual
Warranty Card

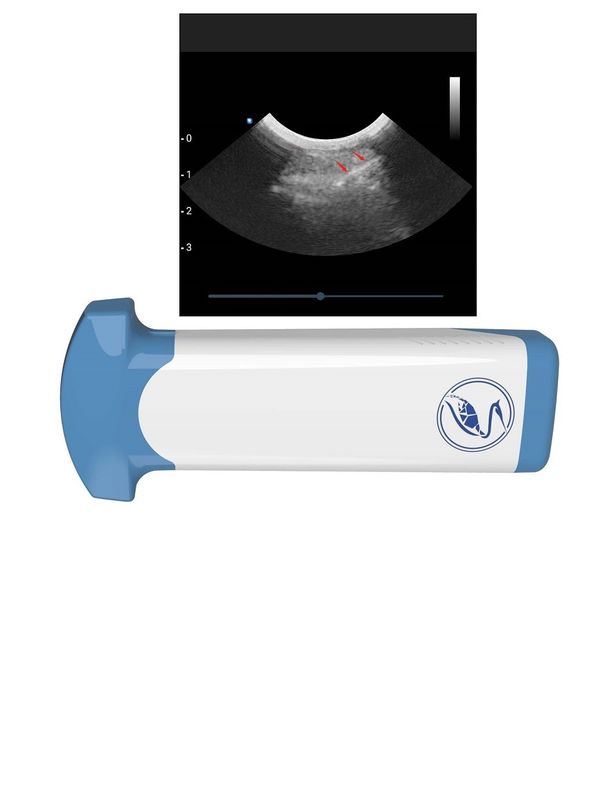

Clinical Image
