Electronic Linear Array Wifi Wireless Portable Ultrasound Scanner 12MHz

Name: Electronic Linear Array Wifi Wireless Portable Ultrasound Scanner 12MHz
Brand: Golead Medical Group Co.,Ltd
SKU: Lite31L
Availability: InStock

Brand Name:	Golead
Model Number:	Lite31L
MOQ:	1 Unit
Delivery Time:	2 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO13485

Product Name:

12MHz Wireless Handheld Ultrasound Scanner For IPad And IPhone

Scanning Mode:

Electronic Linear Array

Element:

128

Frequency:

4-12MHz

Cineloop:

Up To 100 Frames

Language:

English

Display Mode:

B/C/M/PW/PD

Image Storage Format:

JPEG/BMP/PNG/MPEG-4

Battery:

3000 MAh, Maximum 2 Hours' Continuous Use

N/W:

220g

G/W:

480g

Warranty:

1 Year

Packaging Details:

carton box

Supply Ability:

1,000 units per month

Highlight:

wifi wireless portable ultrasound scanner 12MHz

electronic linear array wifi wireless portable ultrasound scanner

wifi ultrasound scanner 12MHz

Product Description

Electronic Linear Array Wifi Wireless Portable Ultrasound Scanner 12MHz

Product Overview

12MHz Handheld Wireless Ultrasound Probe Produced in China

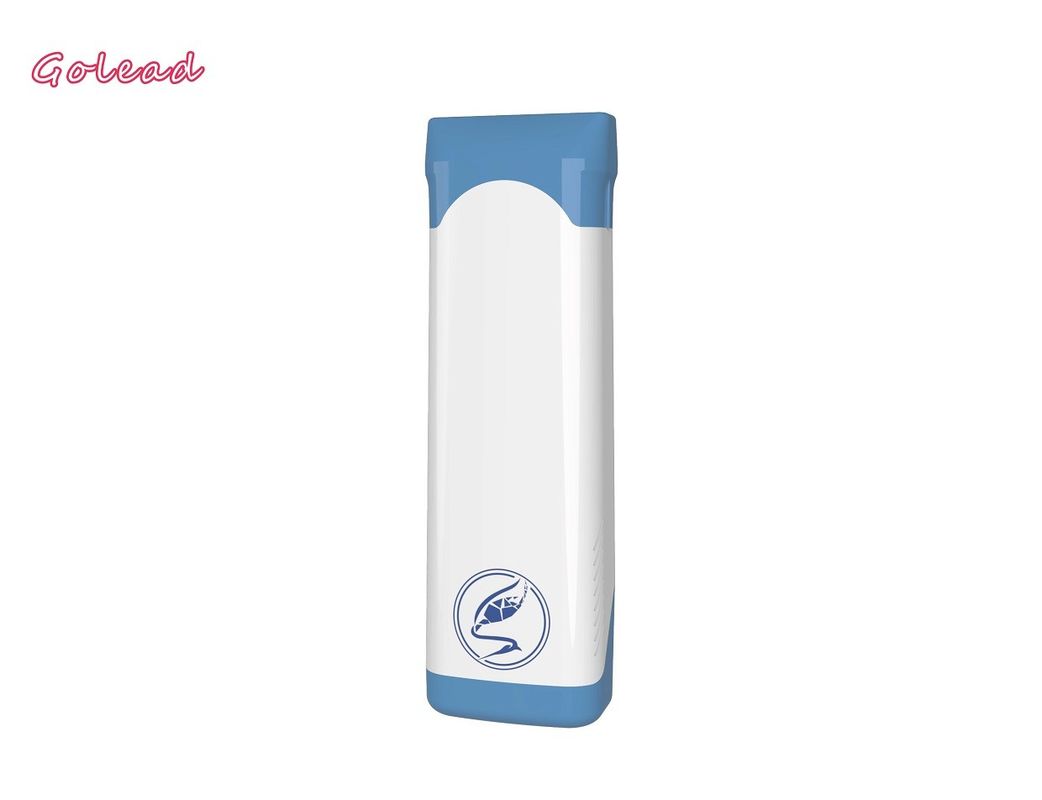

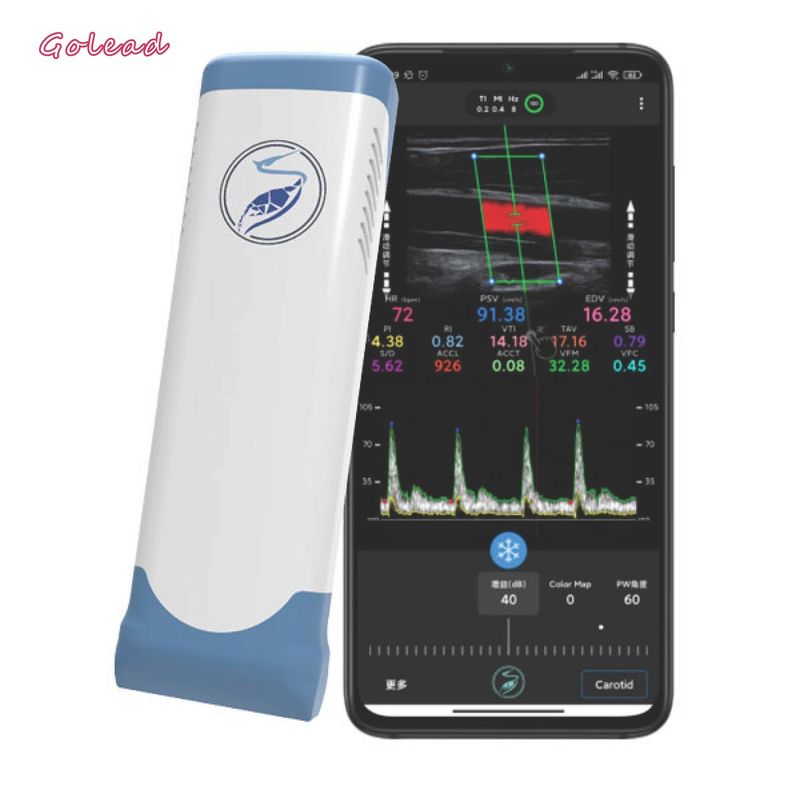

Wireless ultrasound probe Lite31L is a cutting-edge, portable device that enables high-resolution, real-time ultrasound data acquisition and display through mobile devices. The system operates as a user-friendly app on commercial off-the-shelf smart devices, featuring an intuitive touch-based interface.

The wireless transducers utilize Wi-Fi technology for direct communication with smart devices, eliminating the need for cables and providing greater freedom and flexibility during examinations. The imaging system includes a built-in battery, multichannel beamformer, prescan converter, and Wi-Fi components for efficient, reliable operation.

Safety is prioritized with consideration for operator, patient, and personnel positions during normal use. Lite31L delivers superior imaging capabilities in a compact, easy-to-use package, making it an invaluable tool for healthcare professionals across various settings.

Technical Specifications

Parameter	Specification
Scanning mode	Electronic Linear with 128 elements
Display mode	B/C/M/PW/PD
Central frequency	8.3MHz
Depth	12.6cm
Line density	256 scan lines
In-plane needle enhancement	Supported
Image Adjust	Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF
Measure	Length, Area, Circumference, Angle, Trace
Annotation	Yes
FPS	8-30 frames
Packing Dimension	25519060mm
Working System	iOS, Android

Applications

Breast
Pediatrics
Small Parts
MSK
Thyroid
Vascular
Carotid

Standard Configuration

Wireless Handheld Ultrasound Scanner - Lite31L Linear Transducer
Internal Battery
Charging Cable
User Manual
Wireless Charger
