IPHONE IPAD 2 TO 6 MHZ WIRELESS ULTRASOUND PROBE MADE IN CHINA
DESCRIPTION

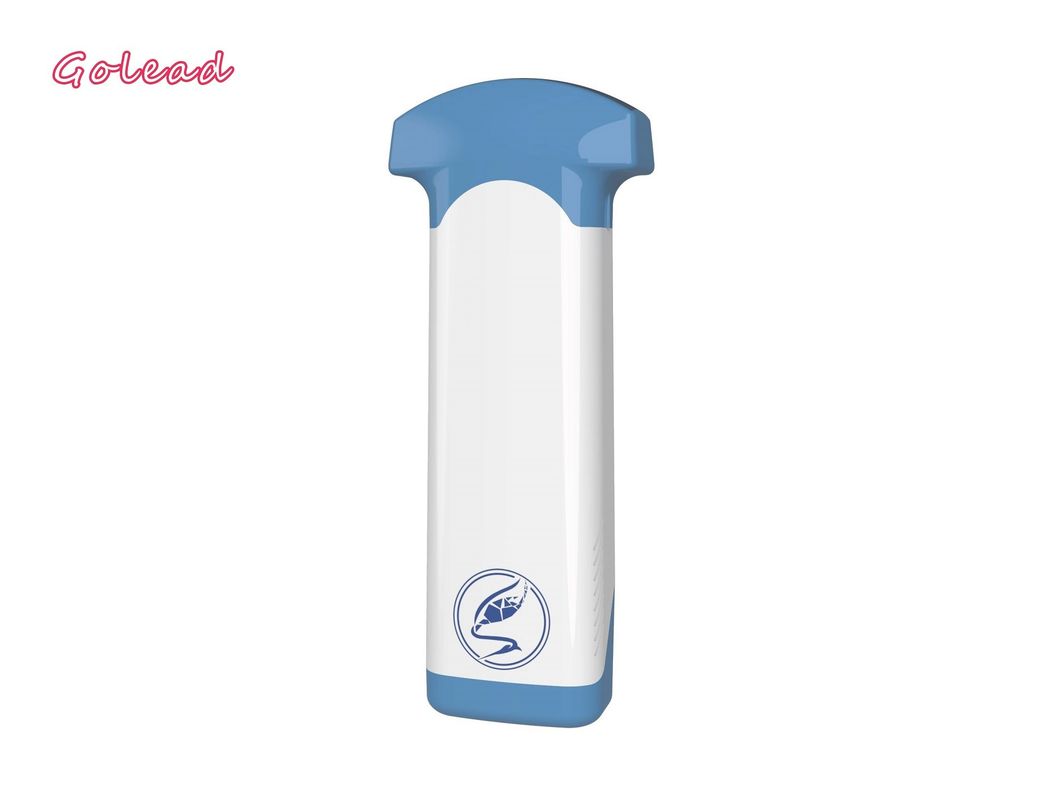

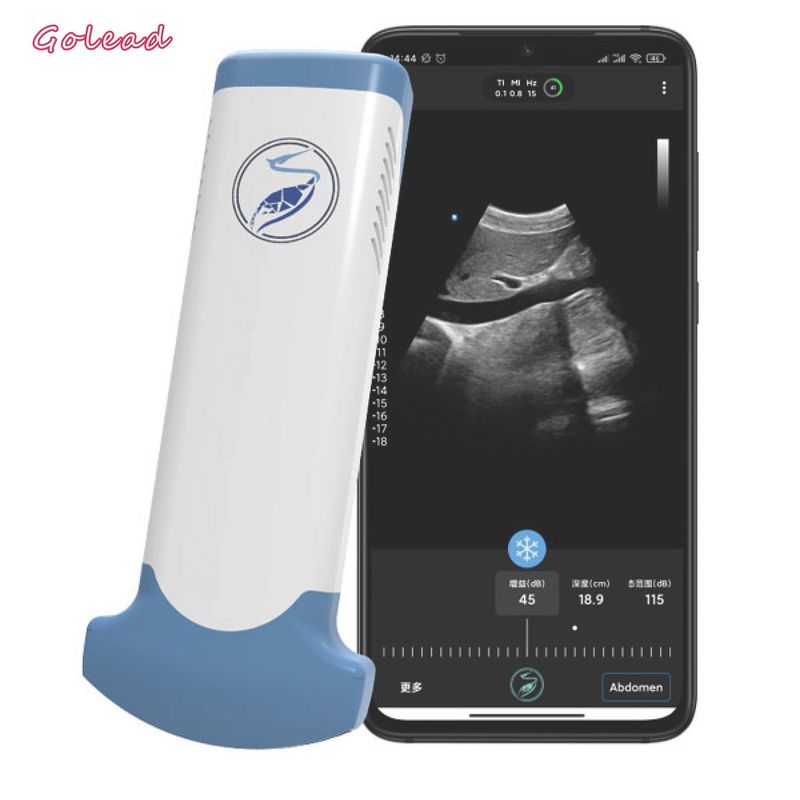

The wireless ultrasound probe Lite31C is a general purpose, portable, software controlled, handheld ultrasound system used to acquire and display hi-resolution and real-time ultrasound data through a commercial off-the-shelf (COTS) Android and iOS mobile device.
The imaging system software runs as an app on a mobile device.
The imaging system software can be downloaded to a commercial off-the-shelf (COTS) smart device and utilizes an icon touch-based user interface.
The imaging system comprises a series of wireless transducers employing Wi-Fi-based technology to communicate with conventional tablet/smartphone devices via Wi-Fi directly. This allows users to export ultrasound images and display them across a range of portable personal devices.
The imaging system houses a built-in battery, multichannel beamformer, prescan converter and Wi-Fi components
The expected positions of OPERATOR, PATIENT, or other persons near ME EQUIPMENT is probe an in NORMAL USE
PARAMETERS:
| Scanning mode | Electronic Convex Array with 128 element |
| Display mode | B/C/M/PW/PD |
| Frequency | 2/3.6/5MHz |
| Depth | 37.8cm |
| Scan angle | 60 degree |
| Head radius | 60mm |
| Image Adjust | Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer |
| Measure | Length, Area, Circumference, Angle, Trace, Obstetrics |
| Annotation | Supported |
| FPS | 8-30 |
| Packing Dimension | 255*190*60mm |
| Working System | iOS, Android |
APPLICATIONS
Abdomen, Gynecology, Obstetric, Urology, Kidney
CONTENT INCLUDED
Wireless Ultrasound Probe – Lite31C Convex Probe
Internal Battery
Charging Cable
User Manual
Warranty Card
