192 Element CE FDA Approved Wireless Interchangeable Handheld Ultrasound Scanner System
Multi-Department Clinical Imaging Platform
OVERVIEW
The interchangeable probe ultrasound system is designed to support multi-department clinical environments where different imaging requirements are needed across various applications. Instead of purchasing multiple standalone devices, clinicians can use a single main unit with different transducers, ensuring consistent imaging performance while reducing equipment redundancy.
This modular design is especially valuable in hospitals and mobile medical units where efficiency, portability, and cost control are critical.
KEY FEATURES
- One Handle, Multiple Probes
- Lower Total Ownership Cost
- Hot-Swap Magnetic Interface
- Multi-Mode Imaging System
CLINICAL APPLICATION
This wireless ultrasound system is widely applicable in:
Anesthesiology, Pain Management, ICU, Emergency Medicine, Ambulance Services, Urology, Hepatobiliary Imaging, Cardiology (Endocardial Access Support), Breast Examination, Physical Examination, Rehabilitation Medicine, Orthopedic Injury Assessment, Gynecology & Obstetrics, Neonatal Care, Reproductive Health, Plastic Surgery & Aesthetic Medicine, Sports Medicine, Military Field Rescue Teams, Disaster Response Units, Primary Care Clinics, Nursing Homes, Postpartum Care Centers, and Health Screening Institutions.

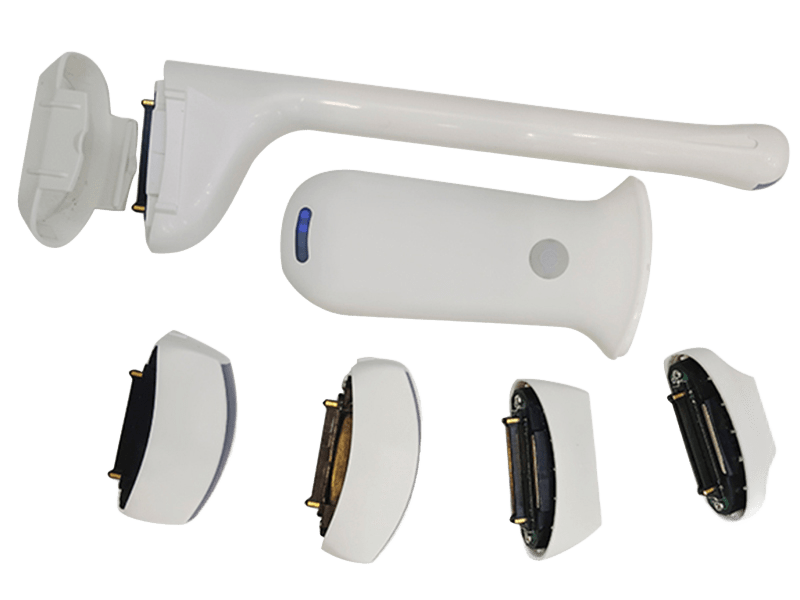

WHY INTERCHANGEABLE PROBE
In traditional ultrasound systems, each probe requires a dedicated handle unit, significantly increasing total system cost when multiple probes are needed.
The interchangeable probe design solves this problem:
- One main unit supports multiple probe types
- Eliminates redundant handle purchases
- Reduces long-term equipment investment cost
- Allows gradual system expansion based on clinical needs
- Simplifies inventory and maintenance for distributors
Even if only one probe is required initially, the system provides a scalable upgrade path for future clinical expansion.
SPECIFICATIONS
Imaging & Scanning System
| Item |
Specification |
| Scan Modes |
Electronic Array, Electronic Convex, Linear Array |
| Display Modes |
B, B/M, Color, PDI, PW |
| Image Adjustment |
Gain, Focus, Harmonic (Reverse Pulse), Noise Reduction |
| Image Gray Scale |
256 levels |
| Frame Rate |
18 fps |
| Dynamic Range |
40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
Probe System (Interchangeable Design)
| Item |
Specification |
| Probe Type Support |
Convex / Phased Array / Linear / Transvaginal |
| Frequency (Convex / Phased Array) |
3.2 MHz / 5.0 MHz |
| Frequency (Linear Probe) |
7.5 MHz / 10 MHz or 10 MHz / 14 MHz |
| Frequency (Transvaginal) |
6.0 MHz / 8.0 MHz |
| Elements |
192 elements |
| Channels |
64 channels |
| Interchangeable Probe System |
Yes (Hot-swappable) |
Scanning Depth & Field of View
| Probe Type |
Depth Range |
Field of View |
| Convex |
90 / 160 / 240 / 300 mm |
R60 |
| Linear |
20 / 40 / 60 / 100 mm |
L40 |
| Phased Array |
90 / 130 / 160 / 200 mm |
R80 |
Puncture & Measurement Functions
| Item |
Specification |
| Puncture Guidance |
In-plane & Out-of-plane needle guidance |
| Vascular Measurement |
Automatic vessel measurement |
| Measurement Tools |
Distance, Area, Obstetrics measurements |
System Compatibility
| Item |
Specification |
| Operating Systems |
iOS / Android / Windows |
| Display Output |
Mobile / Tablet / PC screen support |
| File Formats |
JPG, PNG, MP4, DICOM |
Wireless & Connectivity
| Item |
Specification |
| WiFi Standard |
802.11n |
| Frequency Band |
2.4 GHz / 5 GHz Dual Band |
| Transmission Speed |
Up to 450 Mbps |
Power & Battery System
| Item |
Specification |
| Battery Type |
Built-in Lithium Battery |
| Capacity |
2800 mAh |
| Working Time |
Approx. 2 hours |
| Charging Method |
Wireless charging (supports extended operation) |
Physical Specifications
| Item |
Specification |
| Device Size |
156 mm × 60 mm × 20 mm |
| Net Weight |
200 g |
| Design |
Handheld, wireless portable structure |
Image & Data Storage
| Item |
Specification |
| Image Storage |
JPG, PNG |
| Video Storage |
MP4 |
| Medical Format |
DICOM |
| Playback Modes |
Manual / Auto playback |
| Playback Frames |
100 / 200 / 500 / 1000 frames |
Why Choose Golead Medical?
Golead Medical specializes in handheld ultrasound systems and portable diagnostic imaging equipment for hospitals, clinics and distributors worldwide.
We provide:
- Professional Ultrasound R&D Team
- ISO 13485 Certified Manufacturing
- CE&FDA-Compliant Product Options
- Strict Quality Inspection Before Shipment
- OEM & ODM Manufacturing
- Global Distributor Support
- Technical Training
- Software Upgrade Service
- Fast Worldwide Delivery
Every handheld ultrasound scanner undergoes comprehensive functional testing before shipment to ensure reliable imaging performance and long-term operational stability.
FAQ
Q1: Why choose interchangeable probe system?
A: It allows multiple probe types to share one main unit, reducing total system cost and improving clinical flexibility.
Q2: Is probe replacement complicated?
A: No. The magnetic hot-swap interface allows quick and secure probe changes without shutdown.
Q3: Is image quality stable after frequent replacement?
A: Yes. The interface is designed for long-term repeated use with stable electrical contact.
Q4: Can I upgrade probes later?
A: Yes. The system is fully modular and supports future probe expansion.
Standard Package Includes
- Wireless Ultrasound Host+Probe
- Internal Rechargeable Battery
- Wireless Charger
- Charging Cable
- User Manual
- Carrying Case
Warranty & Technical Support
- 12-Month Warranty
- Online Technical Support
- Software Upgrade Service
- Remote Installation Assistance
- Spare Parts Supply
- OEM & ODM Customization
- Fast Worldwide Shipping
Request a Quote Today
Looking for a reliable handheld ultrasound manufacturer?
Golead Medical provides professional wireless ultrasound solutions for hospitals, clinics, distributors and OEM partners worldwide.
Contact us today to receive:
- Distributor Pricing
- OEM & Private Label Solutions
- Product Catalog
- Technical Datasheets
- Product Demonstration
- Fast Worldwide Delivery
Our professional sales engineers will respond within 24 hours with customized recommendations and competitive quotations.
