Handheld Ultrasound Scanner
Created with Pixso. Depth 18.9cm Handheld Ultrasound Scanner For Iphone 3.6MHz

Depth 18.9cm Handheld Ultrasound Scanner For Iphone 3.6MHz

Brand Name: Golead
Model Number: Lite 31P
MOQ: 1 Unit
Delivery Time: 2 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE, ISO13485
Product Name:
Advanced Imaging Technology Handheld Ultrasound Scanner For IPhone
Scanning Mode:
Electronic Phased Array
Element:
128
Frequency:
2/3.6/5MHz
Cineloop:
100 Frames
Language:
English
Display Mode:
B/C/M
Dimension:
161*47*30 Mm
Battery:
3000mAh, Maximum 2-hour Continuous Use
N/W:
220g
G/W:
480g
Warranty:
1 Year
Packaging Details:
carton box
Supply Ability:
1,000 units per month
Highlight:

Handheld Ultrasound Scanner for iPhone

,

3.6MHz Ultrasound Scanner

,

18.9cm depth Ultrasound Scanner

Product Description

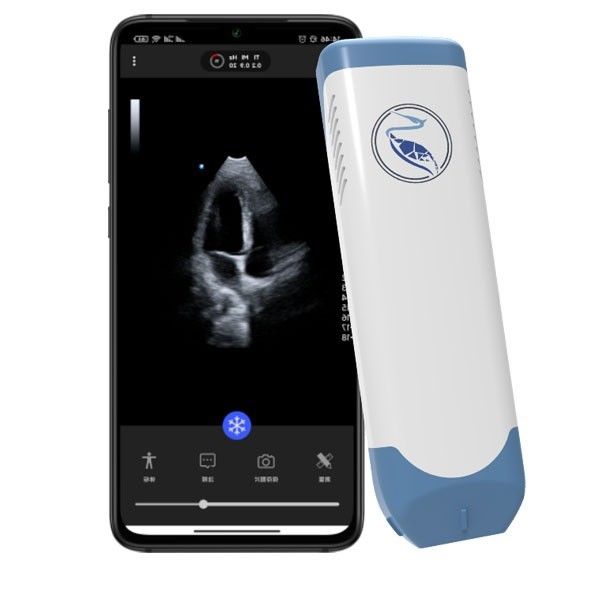

Advanced Imaging Technology Handheld Ultrasound Scanner for iPhone



DESCRIPTION



The Lite 31P handheld ultrasound scanner is a state-of-the-art medical imaging device that incorporates innovative ideas and high integrated design to achieve breakthroughs in several key areas.



One of the most significant breakthroughs is the device's smaller system shape. The Lite 31P is designed to be more compact and lightweight than traditional ultrasound machines, making it easier to transport and use in a variety of clinical scenarios. This feature is particularly useful in emergency situations, where quick and accurate diagnosis can be critical to patient outcomes.



Another breakthrough is the device's powerful performance. Despite its small size, the Lite31P is equipped with advanced imaging technology that allows for high-quality images to be produced quickly and accurately. This makes it a valuable tool for a range of diagnostic applications.



In addition to its performance and size, the Lite 31P also incorporates a range of features that make it suitable for a variety of clinical scenarios. These features include wireless connectivity, long battery life, and user-friendly interface, which allow for easy use in different clinical settings.



Overall, the Lite 31P handheld ultrasound scanner represents a significant advancement in medical imaging technology, providing healthcare providers with a powerful, versatile, and portable tool for point-of-care diagnostic imaging.



PARAMETERS:

​​

Scanning mode Electronic Phased Array with 128 element
Display mode B/C/M
Central frequency 3.6MHz
Depth 18.9cm
Display mode B, C, M, PW
Beams 16 parallel
Image Adjust Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer
Measure Length, Area, Circumference, Angle, Trace
Gray 8 bits
FPS 8-30
Packing Dimension 255*190*60mm
Working System iOS, Android




APPLICATIONS



Cardiac



CONTENT INCLUDED

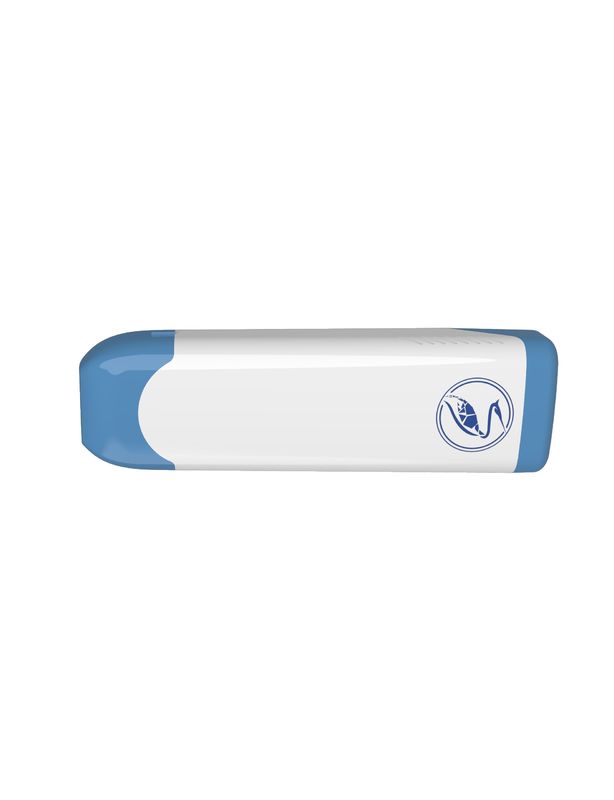

Wireless Handheld Ultrasound Scanner – Lite 31P Cardiac Transducer

Internal Battery

Charging Cable

User Manual





IMAGE GALLERY



Depth 18.9cm Handheld Ultrasound Scanner For Iphone 3.6MHzDepth 18.9cm Handheld Ultrasound Scanner For Iphone 3.6MHzDepth 18.9cm Handheld Ultrasound Scanner For Iphone 3.6MHz
