10.4 Touch Screen 16GB Portable Chison Ultrasound Machine Sonotouch 30

Name: 10.4 Touch Screen 16GB Portable Chison Ultrasound Machine Sonotouch 30
Brand: Golead Medical Group Co.,Ltd
SKU: SonoTouch 30
Availability: InStock

Brand Name:	Chison
Model Number:	SonoTouch 30
MOQ:	1 Unit
Delivery Time:	2 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO13485, FDA

Product Name:

Chison Portable Ultrasound Machine SonoTouch 30 With 1 Probe Connector

Monitor:

10.4 Touch Screen

Transducer Ports:

Memory Card:

16GB

N/W:

10 Lbs

Display Modes:

B, B/B, 4B, M, B/M, CFM, PW

Image Format:

JPG

Warranty:

24 Months

Biopsy Guide:

Yes

Battery Size:

BT-2500, 4400mAh

Packaging Details:

carton box

Supply Ability:

1,000 units per month

Highlight:

Chison Ultrasound Machine Sonotouch 30

Portable Ultrasound Machine chison sonotouch 30

16GB chison sonotouch 30

Product Description

Chison Portable Ultrasound Machine SonoTouch 30 with 1 Probe Connector

Features

The Chison Ultrasound Machine SonoTouch 30 is a popular portable ultrasound device that offers excellent mobility, ease-of-use, and versatility. Its unique tablet-style design allows for touch or stylus operation, making it different from other affordable tablet-style ultrasound machines. The device is easy to use, with an intuitive interface similar to an iPod or tablet, and can run a full range of applications with measurement and analysis packages for a variety of medical applications. It is compatible with various transducers, including linear, convex, microconvex, endocavity, and sector transducers.

Specification

Chison SonoTouch 30

• SonoTouch 30main unit
• 10.4 inch LCD Monitor
• 1 transducer connectors
• USB 3.0
• Large capacity built-in Battery
• Adaptor
• Standard Software include:
• Imaging modes: B/ 2B/ 4B/ M/ CFM/ PW
• Dynamic Multi-beam Technology
• Tissue Harmonic Imaging
• Pure Inversion Harmonic Imaging
• Tissue Specification Imaging
• Spatial Compound Imaging
• Widescan: Trapezoid Imaging
• Convex Extended Imaging
• PW Auto Trace
• TEI Index
• DICOM 3.0: Store, Send
• Auto: Auto optimization for B/ M/ PW/ CW
• TGC: Time gain compensation
• Duplex
• Triplex
• B/C dual live
• Standby Mode
• Zoom
• Auto IMT
• 2D Steer
• Biopsy Guide

Applications

Abdominal, OB/GYN, Cardiac, Small Parts, Urology, Vascular, Anesthesia, General Imaging, Musculoskeletal

Standard Cofiguration

Chison Ultrasound Machine SonoTouch 30 with convex probe

Optional

Transvaginal probe

Phased array probe

Micro-convex probe

Endocavity probe

Video/PC printer

Trolley

Image Gallery

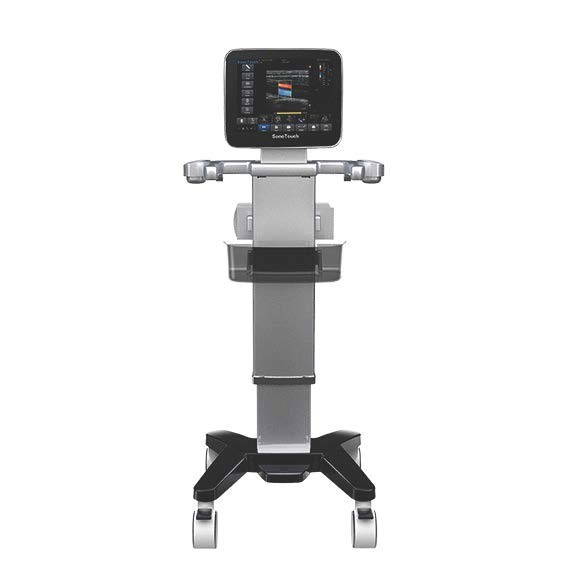

10.4 Touch Screen 16GB Portable Chison Ultrasound Machine Sonotouch 30
