Place of Origin:
China
Brand Name:
Golead
Certification:
CE, ISO13485
Model Number:
UL10-5S
Contact Us

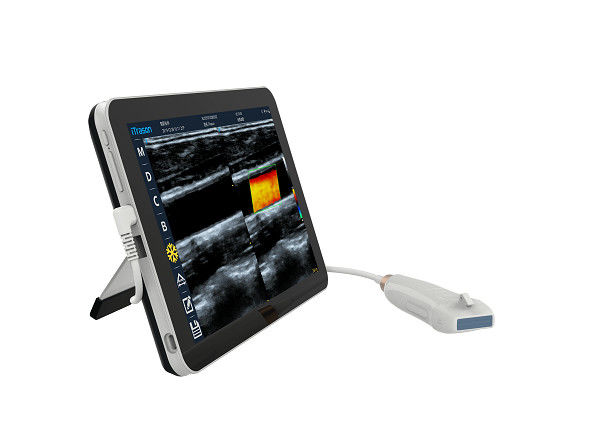

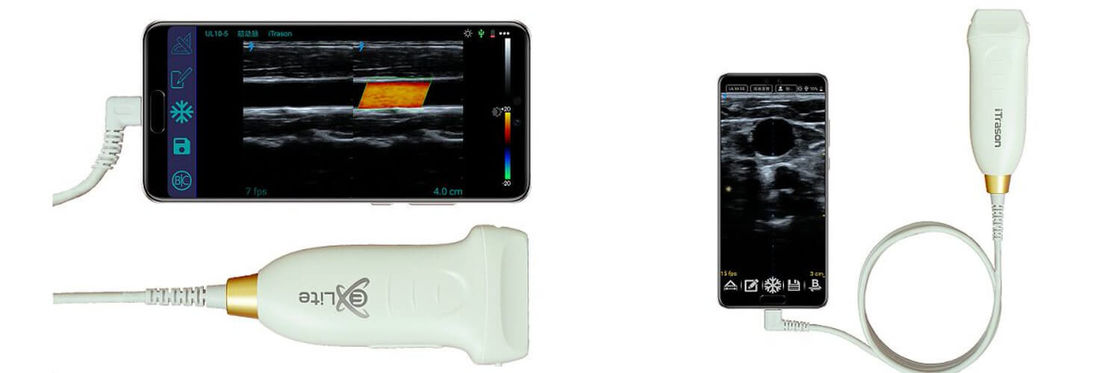

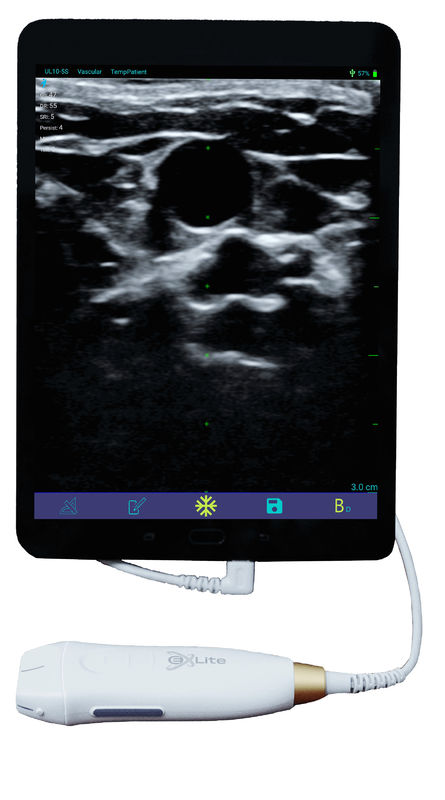

MOBILE USB CABLE CONNECTION HANDHELD ULTRASOUND SCANNER FOR LAPTOP
SYSTEM DESCRIPTION
The handheld ulrasound scanner UL10-5S has a frequency range of 8-12 MHz, allowing it to capture high-resolution images of both superficial and deep structures.
The provides flexibility and convenience for use in various settings.
It has a compact and lightweight design, making it easy to carry and store.
The system has a user-friendly interface, with simple controls and customizable settings, allowing for efficient and personalized examinations.
The UL10-5S handheld ultrasound scanner has received regulatory approvals, such as CE, ensuring its safety and effectiveness for clinical use.
PARAMETERS:
| Scanning mode | Electronic linear Array with 128 element |
| Display mode | B, M, 2B, B/C, B/D, B/C/D |
| Central frequency | 10.0MHz |
| Depth | 20-70mm |
| Zoom | 4 times |
| Channel | 32 |
| Dynamic Range | 45-80dB |
| Cine Memory | 200 frame |
| Gray | 256 |
| FPS | 20 |
| Packing Dimension | 230*110*50mm |
| Storage Format | JPEG, MP4 |
APPLICATIONS
Vascular: a noninvasive diagnostic imaging technique that uses high-frequency sound waves to produce images of the blood vessels in the body. It can provide information on the structure and function of the arteries and veins, as well as the direction and speed of blood flow. This information can be used to diagnose a range of vascular conditions, such as deep vein thrombosis (DVT), peripheral artery disease (PAD), and aneurysms. Vascular ultrasound is considered safe and painless, and it does not involve any radiation exposure.
Small parts: a valuable tool for diagnosing and assessing various conditions affecting the superficial organs and structures of the body. It is often used to evaluate the breast tissue for abnormalities, such as cysts or tumors, and to guide biopsies or other procedures. Small parts ultrasound can also be used to assess the thyroid gland for nodules, enlargement, or other abnormalities.
Additionally, small parts ultrasound can be used to evaluate musculoskeletal injuries affecting the tendons, ligaments, and soft tissues of the body. It is commonly used to assess sprains, tears, and other injuries in the joints, such as the shoulder, elbow, wrist, hip, knee, and ankle.
MSK: musculoskeletal ultrasound, is a non-invasive diagnostic imaging technique that uses sound waves to produce images of the muscles, tendons, ligaments, nerves, and joints throughout the body. It is commonly used to diagnose a wide range of musculoskeletal conditions, such as sprains, strains, tears, and other injuries affecting the soft tissues.
MSK ultrasound can also be used to evaluate joint inflammation and other conditions, such as rheumatoid arthritis and osteoarthritis. It can help detect joint effusions, synovitis, and other abnormalities that can be missed by other imaging techniques.
Overall, MSK ultrasound is a valuable tool in the diagnosis and management of musculoskeletal conditions, providing quick and accurate diagnosis and facilitating timely and appropriate care. It is non-invasive, safe, and does not involve any radiation exposure, making it a preferred choice for many patients and healthcare providers.
CONTENT INCLUDED
Handheld Ultrasound Scanner – UCL10-5S Linear Probe
Charging Cable
User Manual
