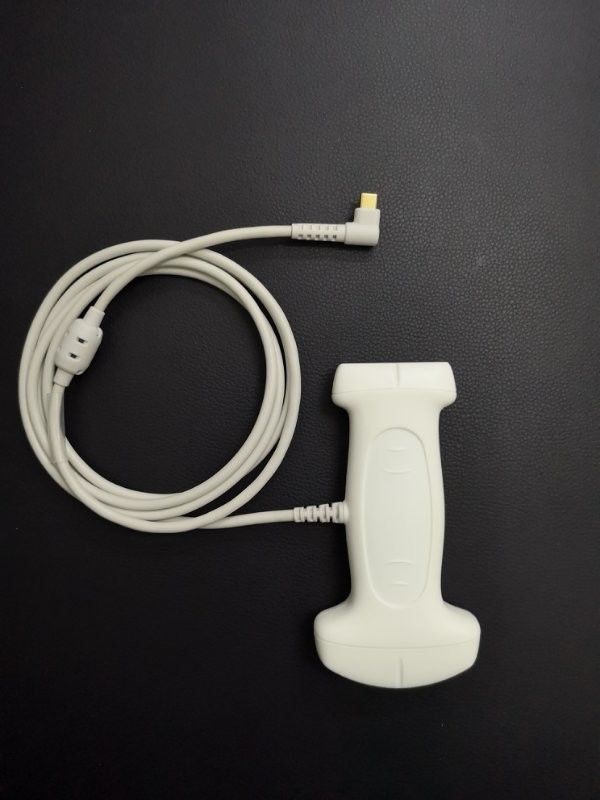

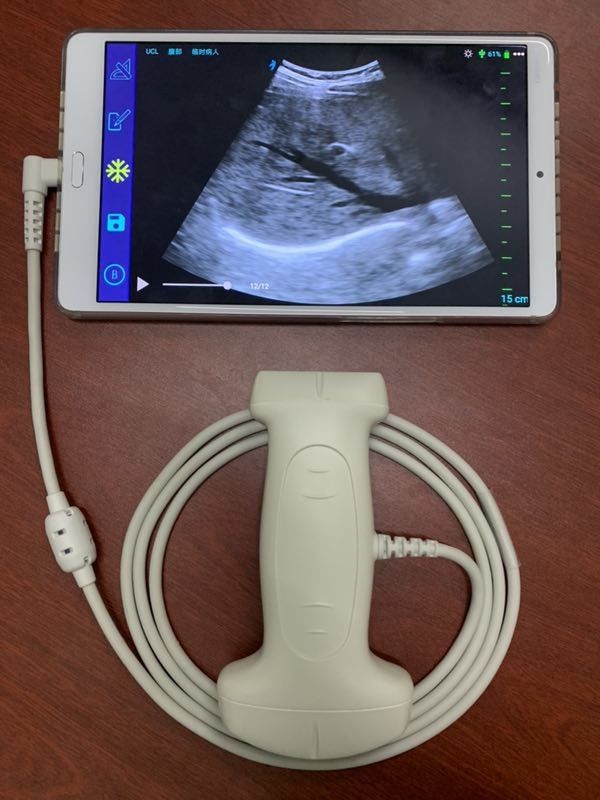

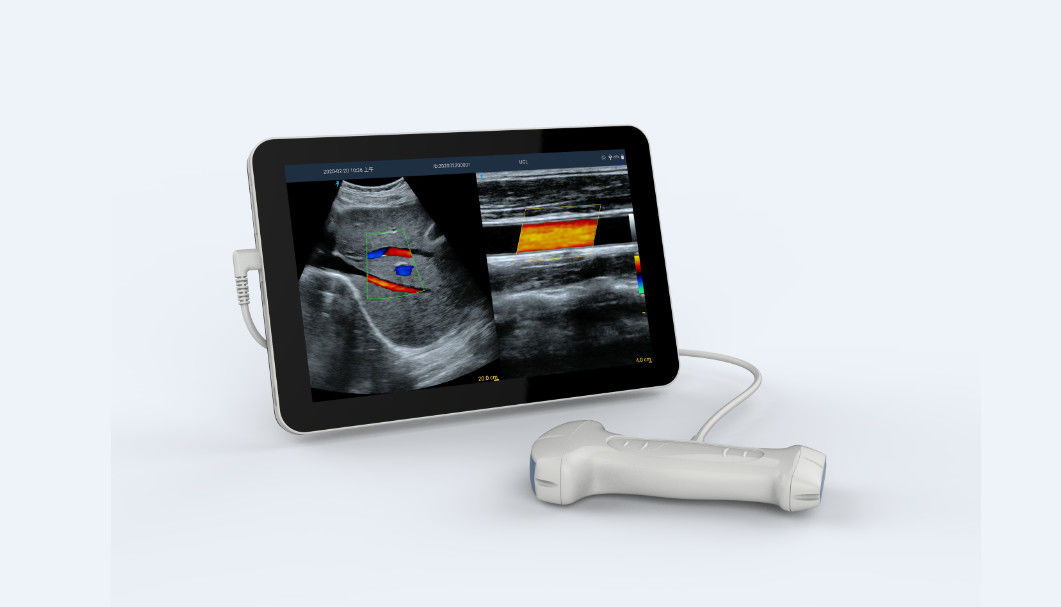

Dual Head High Frequency Handheld Ultrasound Scanner Image Gallery
A new generation of handheld portable ultrasound scanner for POC.
Application
Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal
Electrical Power
| Voltage | 5 V |
| Max Power | 0.25 W |
Physical Specifications
| Packing size | 210mm×130mm×50mm |
| Packing weight | ~400g |
Cine/Image Memory
| Cine Memory | 200 frame |
| Capture area | Image only / full screen |
DICOM Connectivity
DICOM3.0 Storage
Image Storage
Storage Format: JPEG, MP4
Technology
| Full field synthetic aperture imaging Tech |
| Multi-beam formation Tech |
| Speckle Reduction Tech |
| Phase-inverse Harmonic Imaging Tech |
| Duplex Synchronous Display |
| Directional Power Doppler |
| Imaging Parameters Preset |
General Performance
| Digital Beamformer Channels | 64 channels |
| Beam-former Frequency Range | 1~18 MHz |
Imaging Performance
| Startup Time (Max) | Avg. < 10 seconds |
| Preset Switching Time | Avg. < 1 second |
| Storage Time (Image to Disk) | Avg. < 1 second |
Transducers
| Probe | Convex Array Probe | Linear Array Probe |
| Frequency | Central 3.5 MHz (2.0MHZ to 5.0MHZ) | Central 7.5 MHz (5.0MHZ to 10.0MHZ) |
| Pitch | 0.78mm | 0. 5mm |
| Radius | 60mm | N/A |
| Elements | 80/128 | 80/128 |
B-Mode
| Maps | 8 |
| Gain | 0~100 |
| TGC | 6 Sliders |
| Dynamic Range | 45~80dB |
| Depth | Max. 24cm |
| Chroma | 0~7 |
| Grayscale Levels | 256 |
| Frame Rate | Max.15 Hz |
| Persistence/ Frame Average | 1~4 |
| Top/Bottom/Left/Right Reverse | Yes |
| Speckle Reduction | Yes |
| Harmonic imaging | Yes (linear probe) |
Color Mode
| Gain | 0~100 |
| Color Maps | 1~12 |
| Doppler Steer Angles | 7 Steps |
| Wall Filter | 1~4 |
| Persistence/Frame Average | 1~5 |
PW Mode
| Gain | -20~20 |
| D Linear Velocity | L/M/H |
| Doppler Steer Angles | 5 Steps |
| Wall Filtering | 1~3 |
| Correction Angle | 80°/-80° |
| Max PRF | 10kHz |
| Baseline Adjustment | -3~3 |
MEASUREMENTS SPECIFICATIONS
Analysis Packages
Basic, Obstetrics, Urology
Standard Configuration
Handheld Ultrasound Scanner
Warranty Card
