Place of Origin:
China
Brand Name:
Golead
Certification:
CE, ISO13485
Model Number:
S35C
Contact Us

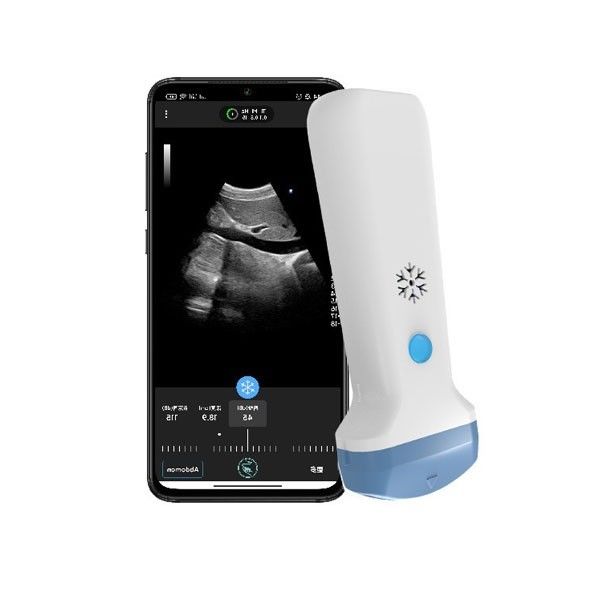

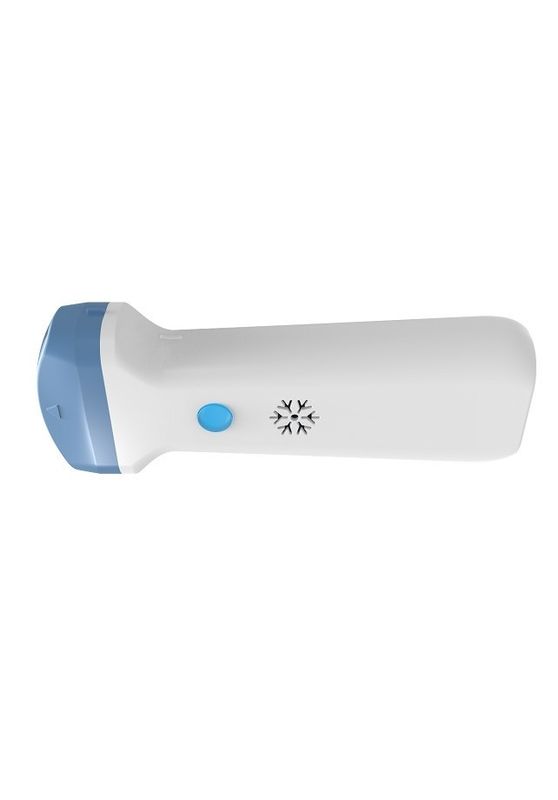

Easy-to-take Handheld Diagnostic Imaging Ultrasound Scanner for POCUS
DESCRIPTION
A convex probe is a type of ultrasound transducer that is commonly used in point-of-care ultrasound (POCUS) settings. This type of probe has a curved or convex shape, which allows for wider field of view compared to linear or phased array probes.
Convex probes are typically used for abdominal and obstetric exams, as well as for cardiac imaging. They can be used to visualize structures such as the liver, gallbladder, pancreas, and uterus, as well as to assess cardiac function and detect abnormalities in the heart.
One advantage of using a convex probe in POCUS is its ability to provide real-time imaging. This can be particularly useful in emergency or critical care settings, where rapid diagnosis and treatment is crucial.
In addition, convex probes are relatively easy to use and are generally more comfortable for patients than other types of probes. They also produce images that are less susceptible to artifacts, which can improve diagnostic accuracy.
Overall, the convex probe is an important tool in POCUS, providing healthcare providers with a reliable and versatile option for diagnostic imaging in a range of clinical settings.
PARAMETERS:
| Model | Handheld ultrasound scanner S35C |
| Scanning mode | Electronic Convex Array with 128 elements |
| Display mode | B/C/M/PW/PD |
| Central frequency | 3.6MHz |
| Depth | 378mm |
| Zoom | 4 times |
| Channel | 32 |
| Dynamic Range | Max 180dB |
| Sampling Rate | 50MHz |
| Gray | 256 |
| FPS | 8 to 30 |
| Packing Dimension | 255*190*60 mm |
| Battery | 3,000 mAh |
APPLICATIONS
ABD, GYN, UR, LUNG, FAST
CONTENT INCLUDED
Wireless Handheld Ultrasound Scanner – S35C Convex Probe
Internal Battery
Charging Cable
User Manual
Wireless Charger
IMAGE GALLERY
