PICC 12MHZ HANDHELD ULTRASOUND SCANNER 128 ELEMENT PROBE
SYSTEM DESCRIPTION
The handheld ultrasound scanner UL10-5S is a portable and user-friendly system that consists of a display and an ultrasonic probe. The system uses advanced beamforming and image processing technology to produce high-quality images. It is designed for use in various medical specialties, including peripheral vascular, anesthesia, small parts, MSK, and athletic medical.
The ultrasound scanner is suitable for use on adults, pregnant women, pediatric patients, and neonates. Its application software supports both Chinese and English, making it accessible to users in different regions.
The system offers B-mode imaging, measurement, image storage, and management functions, providing comprehensive diagnostic capabilities. Its ergonomically designed structure ensures ease of use and comfort during examinations.
Overall, the UL10-5S handheld ultrasound scanner is a reliable and efficient tool for medical professionals, providing accurate and timely diagnoses in a variety of medical settings.
PARAMETERS:
| Scanning mode | Electronic linear Array with 128 element |
| Display mode | B, M, 2B, B/C, B/D, B/C/D |
| Central frequency | 10.0MHz |
| Depth | 20-70mm |
| Zoom | 4 times |
| Channel | 32 |
| Dynamic Range | 45-80dB |
| Cine Memory | 200 frame |
| Gray | 256 |
| FPS | 20 |
| Packing Dimension | 230*110*50mm |
| Storage Format | JPEG, MP4 |
APPLICATIONS
Vascular: vascular ultrasound is a noninvasive test healthcare providers use to determine how blood flows in arteries and veins in your arms, neck and legs. They use this test to diagnose blood clots, narrowed blood vessels, and other vascular health conditions.
Small parts: its wide array of applications include assessing diseases and disorders of superficial organs like breasts, testicles and thyroid, as well as assessing musculoskeletal injuries like sprains and tears, making Small Parts ultrasound a vital tool for improving patient care.
MSK: ultrasound imaging uses sound waves to produce pictures of muscles, tendons, ligaments, nerves and joints throughout the body. It is used to help diagnose sprains, strains, tears, trapped nerves, arthritis and other musculoskeletal conditions.
CONTENT INCLUDED
Handheld Ultrasound Scanner – UCL10-5S Linear Probe
Charging Cable
User Manual

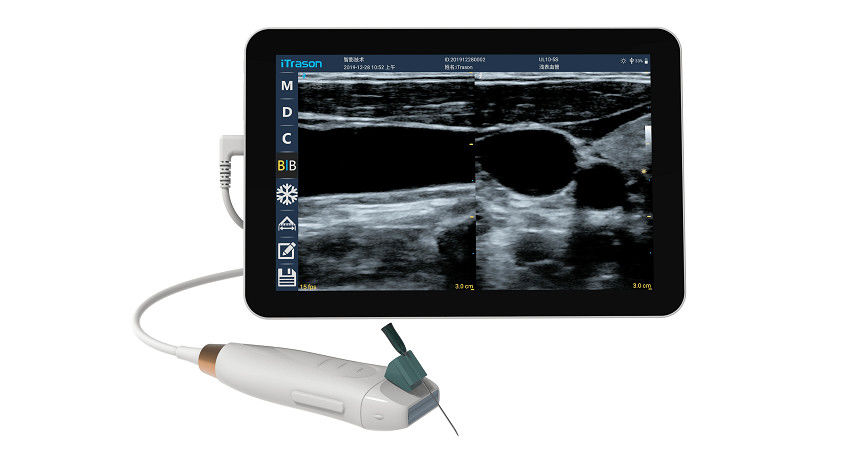

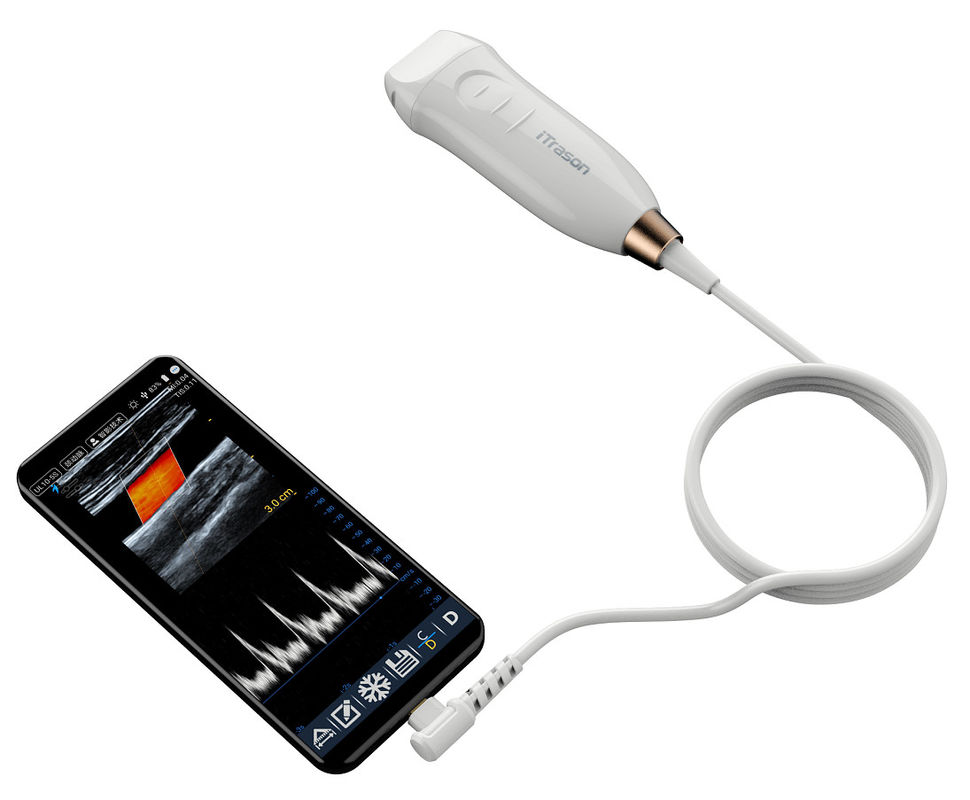

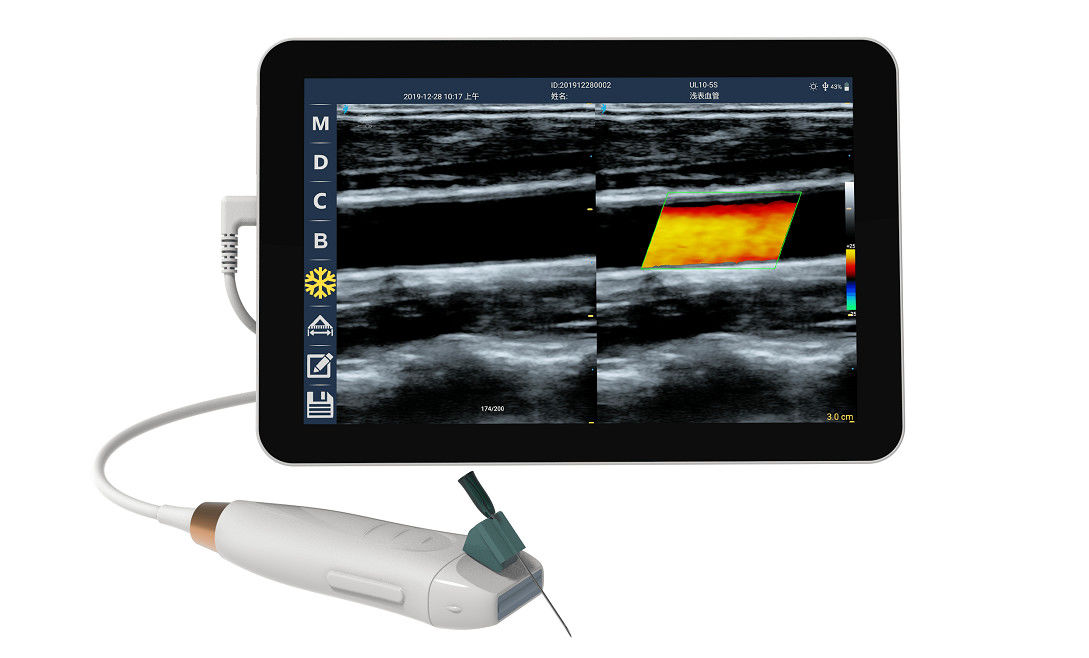

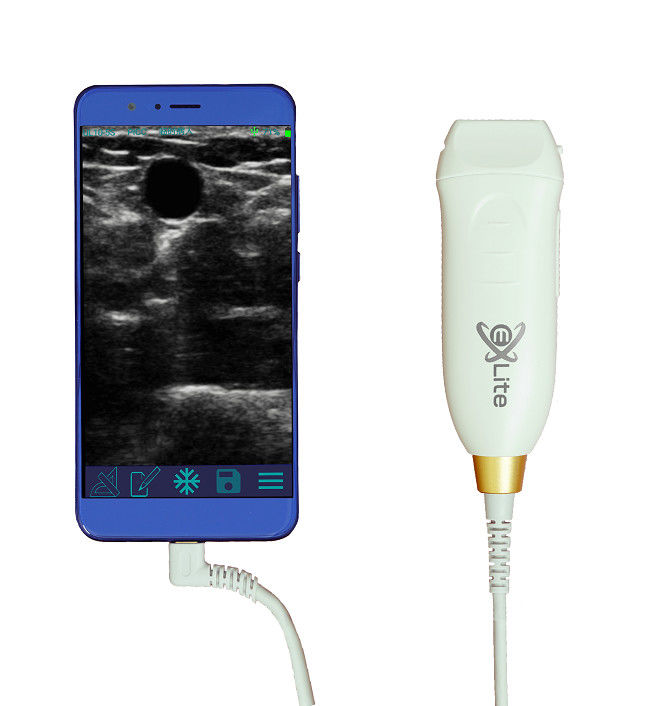

IMAGE GALLERY
