ANDROID 10MHZ HANDHELD ULTRASOUND SCANNER WITH TYPE-C CONNECTION
SYSTEM DESCRIPTION
Handheld ultrasound scanner consists of a display (including software) and an ultrasonic probe. The system uses advanced beamforming and image processing technology. System software supports B-mode imaging, measurement, image storage and
management functions.
Product structure: consists of a display (including software) and an ultrasound probe.
The handheld ultrasound scanner UL10-5 is an ergonomically designed portable and ease-of-use system for multi-specialty uses, such as adults, pregnant women, pediatric patients and neonates. It is intended for the use in peripheral vascular, anesthesia, small parts, MSK, and athletic medical.
The system application software supports Chinese and English.
PARAMETERS:
| Scanning mode | Electronic linear Array with 128 element |
| Display mode | B, M, 2B, B/C, B/D, B/C/D |
| Central frequency | 7.5MHz |
| Depth | 20-70mm |
| Zoom | 4 times |
| Channel | 32 |
| Dynamic Range | 45-80dB |
| Sampling Rate | 50MHz |
| Gray | 256 |
| FPS | 20 |
| Packing Dimension | 230*110*50mm |
| Max PRF | 10kHZ |
APPLICATIONS
Vascular: vascular ultrasound is a noninvasive test healthcare providers use to determine how blood flows in arteries and veins in your arms, neck and legs. They use this test to diagnose blood clots, narrowed blood vessels, and other vascular health conditions.
Small parts: its wide array of applications include assessing diseases and disorders of superficial organs like breasts, testicles and thyroid, as well as assessing musculoskeletal injuries like sprains and tears, making Small Parts ultrasound a vital tool for improving patient care.
MSK: ultrasound imaging uses sound waves to produce pictures of muscles, tendons, ligaments, nerves and joints throughout the body. It is used to help diagnose sprains, strains, tears, trapped nerves, arthritis and other musculoskeletal conditions.
Nerve: ultrasound imaging allows physicians to directly view nerve damage. Different diseases affect nerves in characteristic ways, some of which can be seen with ultrasound. Ultrasound is well suited for detecting nerve entrapments, such as carpal tunnel syndrome.
CONTENT INCLUDED
Handheld Ultrasound Scanner – UL10-5 Linear Probe
Charging Cable
User Manual
Warranty Card

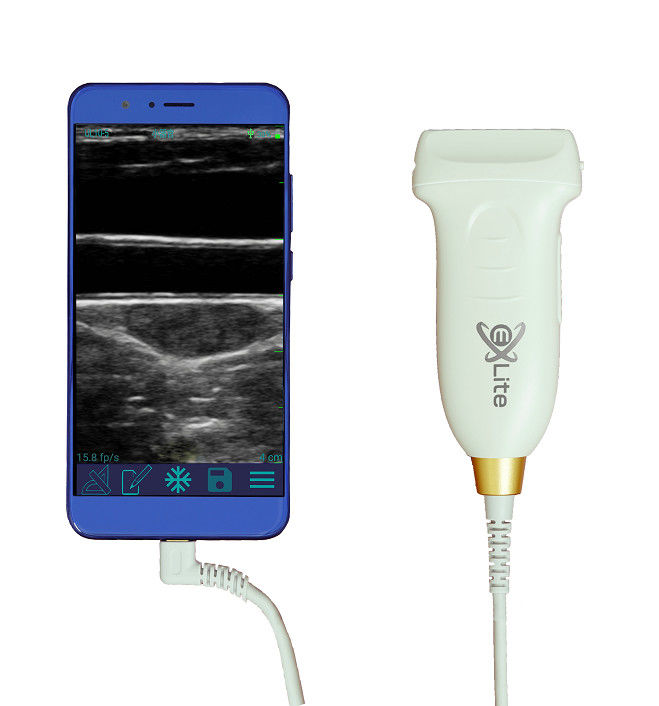

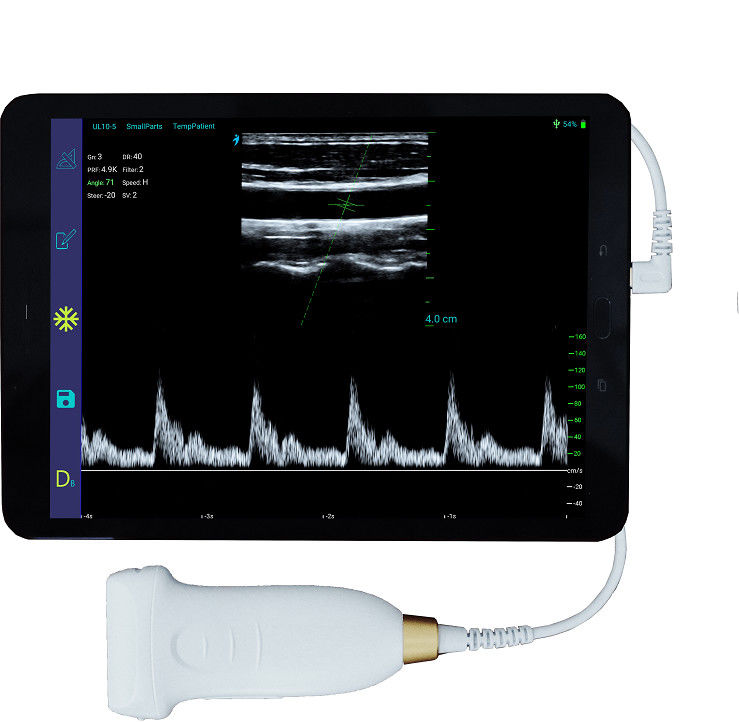

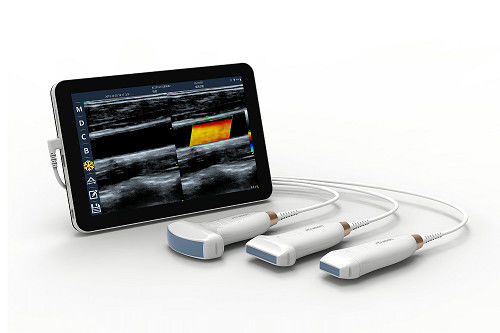

IMAGE GALLERY
