Place of Origin:
China
Brand Name:
Golead
Certification:
CE, ISO13485
Model Number:
H35C
Contact Us

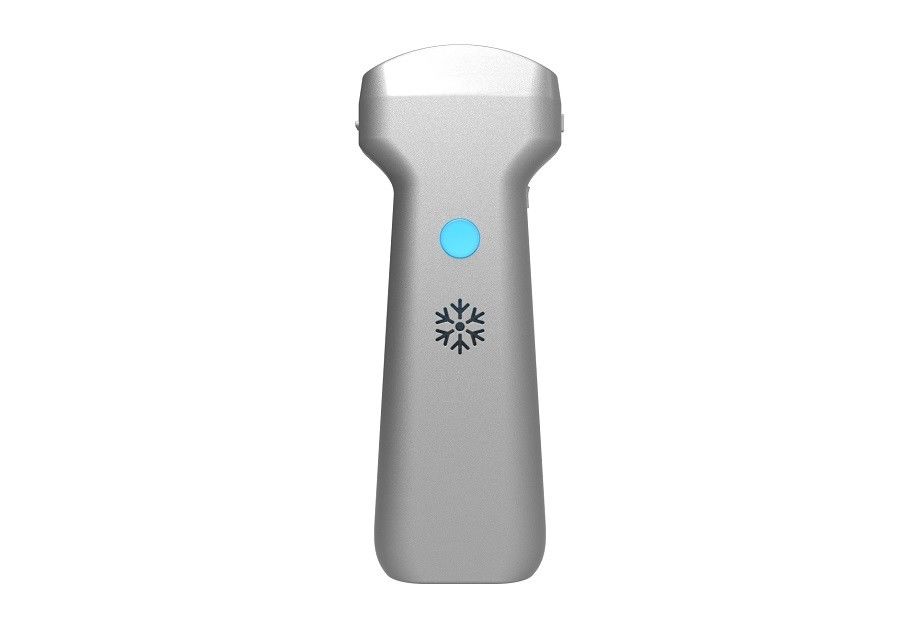

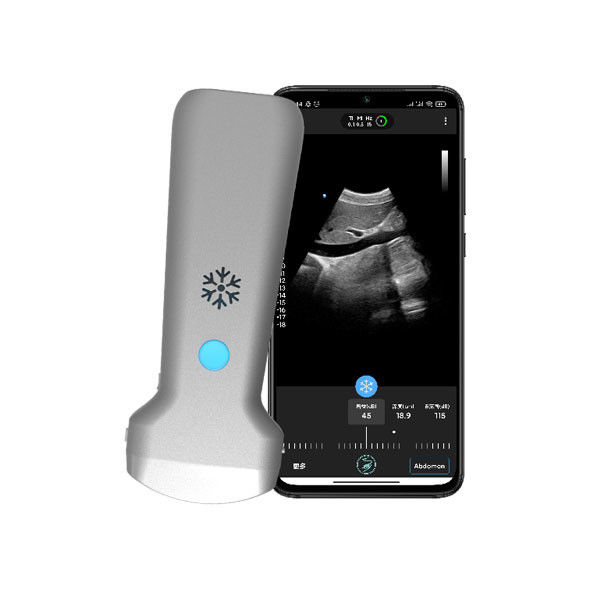

179mm Mobile Convex Handheld Ultrasound Scanner with WiFi Connection
DESCRIPTION
The H series wireless handheld Doppler ultrasound machine uses advanced technologies usually found in high end and premium cart ultrasound machines to form very high quality images compared to its class of ultra-portable systems. With a user interface designed to be friendly and accessible without compromising flexibility, the H series support standard applications across two different probes, including convex and linear. Different models depend on the selected configuration.
Specialized application packages, including automatic measurements, improve the ease of use and offer guidelines on disease detection. These functions are especially important on devices with limited physical screen space and for users with various backgrounds. On selected devices supporting GPU,patial composite imaging and speckle reduction the H series probe supports real-time low-latency image processing up to 30 fps for further response time and image quality improvement.
Phase inversion tissue harmonic imaging provides clear imaging for difficult patients.It provides excellent image quality for the target application, and enhances the confidence in the diagnosis and treatment of medical staff in the field of intervention.
PARAMETERS:
| Scanning mode | Electronic Convex Array with 128 elements |
| Display mode | B/C/M/PW/PD |
| Central frequency | 3.6MHz |
| Depth | 37.8cm |
| Zoom | 4 times |
| Channel | 32 |
| Dynamic Range | 180dB |
| Sampling Rate | 50MHz |
| Gray | 256 |
| FPS | 8-30 |
| Packing Dimension | 255*190*60mm |
| Video Storage | MPEG-4 |
APPLICATIONS
ABD, GYN, UR, LUNG, FAST
CONTENT INCLUDED
Wireless Handheld Ultrasound Scanner – H35C Convex Probe
Internal Battery
Charging Cable
User Manual
Wireless Charger
